Service pole, type ISSHS6

Type ISSHS6EL | Item no. 6290073 | EAN 4012195161561

Data sheet (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

6290073 / ISSHS6EL

Colour

aluminium

Smallest selling unit: 1 piece

Description Technical data Downloads Accessories Variants

Description

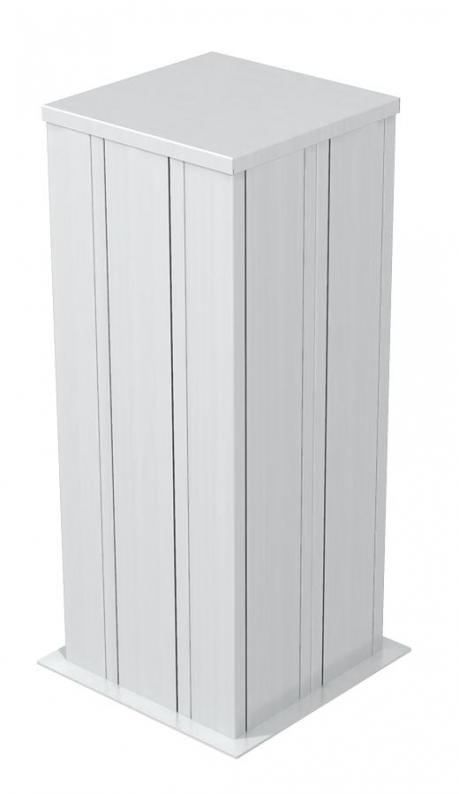

ISS service pole centre.

Empty, can be equipped from all four sides with standard devices (socket, telephone, etc.). Two sides of the installation centre can be equipped in two compartments, the other two sides in one. Each installation compartment can accept 5 devices, the entire installation centre accepts max. 30 devices. Direct fastening on floor possible. Accessory mounting boxes to be ordered separately.

The service pole is suitable for accepting front locking accessory mounting boxes of the series 71GD.... The installation of a partition of type GA-TW (6279711) and the installation of the cover clip, type KL80A, are possible as an option.

Technical data

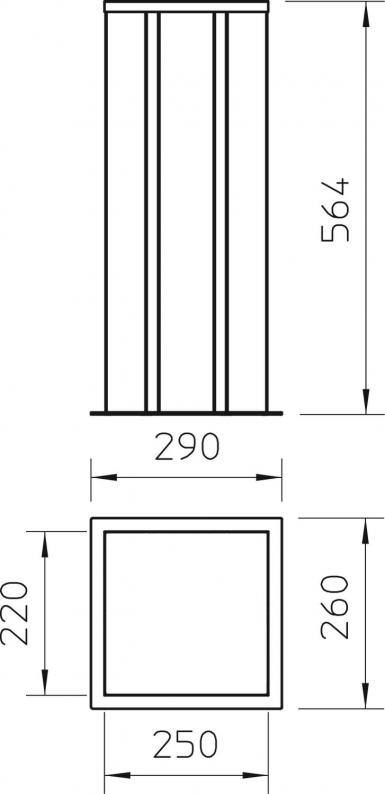

Dimensions

Length	564 mm
Width	290 mm
Height	260 mm
Pole height, min.	564 mm

Technical data

Number of compartments	6 St.
Halogen-free	yes
Pole shape	Rectangular
Adjustable	no
Number of usable covers	6
Changes according to location	no
Ceiling mounting	no
Floor mounting	yes
Cable entry	Bottom
Pre-wired	no
Continuous profile	yes
Version for	Miscellaneous
Fastening type	Bolts
Cover width	76,5 mm
Dimension	564x290x260
Surface	Anodised
Material	Aluminium
Colour	aluminium
CO2 Footprint (GWP) Cradle-to-Gate	120,7408 kg CO2e / 1 Piece
