Service pole, type ISSHS4

Type ISSHS4 61OT3RW | Item no. 6286700 | EAN 4012195143888

Data sheet (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

Length

Colour

Smallest selling unit: 1 piece

Description Technical data Downloads Accessories Variants

Description

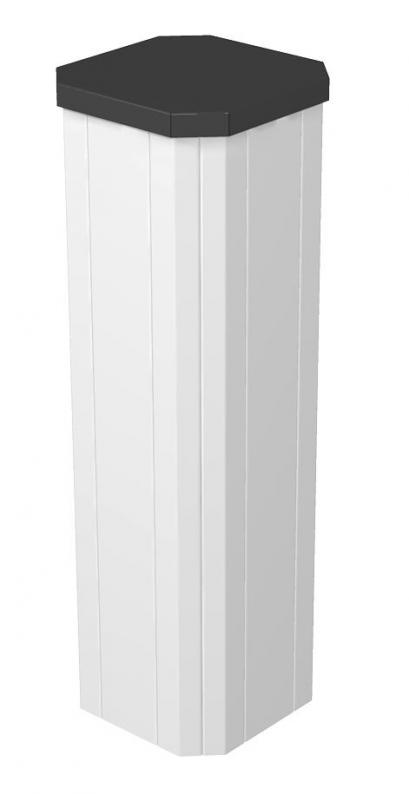

ISS sheet steel service pole with a 76.5 mm system opening on four sides.

Empty, fittable from all four sides with six standard devices (socket, telephone, etc.) on each side, max. 24 devices. Fastening possible directly on the floor. Accessory mounting boxes to be ordered separately. The service pole is suitable for accepting front locking accessory mounting boxes of the series 71GD....

Technical data

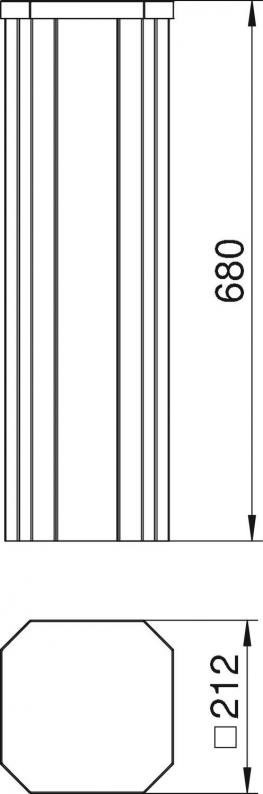

Dimensions

Length	680 mm
Width	212 mm
Height	212 mm
Pole height, min.	680 mm

Technical data

Number of compartments	4 St.
Halogen-free	yes
Pole shape	Square
Adjustable	no
Number of usable covers	4
Changes according to location	no
Ceiling mounting	no
Floor mounting	yes
Cable entry	Bottom
Pre-wired	no
Continuous profile	yes
Version for	Miscellaneous
Fastening type	Bolts
Cover width	76,5 mm
Dimension	680x212x212
Material	Steel
Colour	Pure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate	36,2655 kg CO2e / 1 Piece
