Service pole, type ISSHS140700

Service pole, type ISSHS140700

Type ISSHS140700RW | Item no. 6290040 | EAN 4012195161349

Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

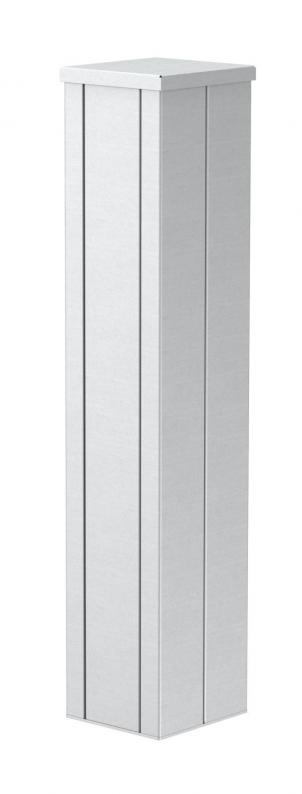

ISS aluminium service pole, 2-compartment, with a 76.5 mm system opening.

Empty, equippable with standard devices (socket, telephone, etc.), max. 10 devices.

Direct fastening on floor possible. Accessory mounting boxes to be ordered separately.

The service pole is suitable for accepting front locking accessory mounting boxes of the

series 71GD.... The installation of a partition of type GA-TW (6279711) and the installation of the cover clip, type KL80A, are possible as an option.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Floor service pole
  • Track width 76.5 mm
  • Devices
  • Protective contact socket
  • CO₂ footprint (PCF)

Technical data

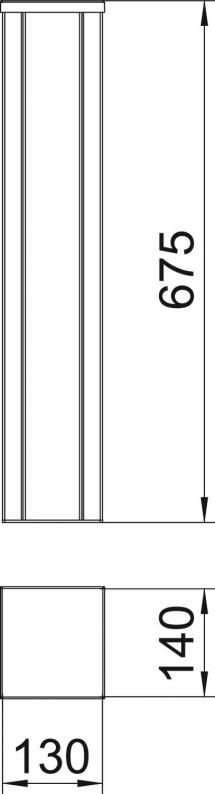

Dimensions

Length675 mm
Width130 mm
Height140 mm
Pole height, min.675 mm

Technical data

Number of compartments2 St.
Halogen-freeyes
Pole shapeRectangular
Adjustableno
Number of usable covers2
Changes according to locationno
Ceiling mountingno
Floor mountingyes
Cable entryBottom
Pre-wiredno
Continuous profileyes
Version forDouble-sided
Fastening typeBolts
Cover width76,5 mm
Dimension675x130x140
MaterialAluminium
ColourPure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate49,886 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories
Type
71GD6

Smallest selling unit: 5 piece

Type
71GD7-2

Smallest selling unit: 2 piece

Type
8AWR

Smallest selling unit: 10 piece

Variants

Colour
ISSHS140700RW
Item no.
6290040
Length
675
Colour
Pure white; RAL 9010
ISSHS140700EL
Item no.
6290043
Length
675
Colour
aluminium
