Service pole, type ISSHS140250

Service pole, type ISSHS140250

Type ISSHS140250RW | Item no. 6290020 | EAN 4012195161226

Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

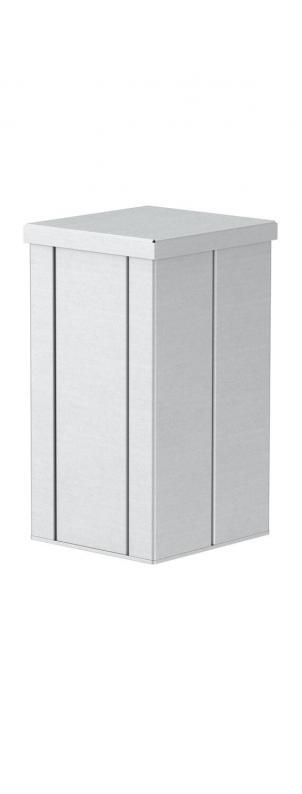

ISS aluminium service pole, 2-compartment, with a 76.5 mm system opening.

Empty, equippable with standard devices (socket, telephone, etc.), max. 4 devices.

Fixing possible directly on floor. Accessory mounting boxes to be ordered separately.

The service pole is suitable for accepting front-locking accessory mounting boxes of the series 71GD.... The installation of a partition of type GA-TW (6279711) and the installation of the cover clip, type KL80A, are possible as an option.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Floor service pole
  • Track width 76.5 mm
  • Devices
  • Protective contact socket
  • CO₂ footprint (PCF)

Technical data

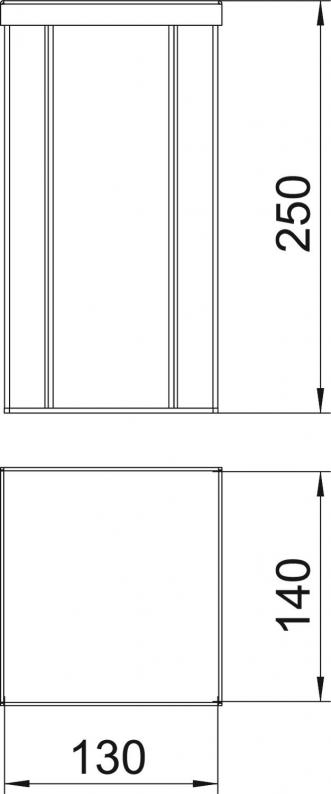

Dimensions

Length250 mm
Width130 mm
Height140 mm
Pole height, min.250 mm

Technical data

Number of compartments2 St.
Halogen-freeyes
Pole shapeRectangular
Adjustableno
Number of usable covers2
Changes according to locationno
Ceiling mountingno
Floor mountingyes
Cable entryBottom
Pre-wiredno
Continuous profileyes
Version forDouble-sided
Fastening typeBolts
Cover width76,5 mm
Dimension250x130x140
MaterialAluminium
ColourPure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate22,0798 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories
Type
71GD6

Smallest selling unit: 5 piece

Type
71GD7-2

Smallest selling unit: 2 piece

Type
8AWR

Smallest selling unit: 10 piece

Variants

Colour
ISSHS140250RW
Item no.
6290020
Length
250
Colour
Pure white; RAL 9010
ISSHS140250EL
Item no.
6290023
Length
250
Colour
aluminium
