Service pole, type ISS110100R
Type ISS110100REL | Item no. 6289063 | EAN 4012195477426
Item no. / Type
Length
Colour
Fastening type
Tension
Material
Aluminium
Surface
Anodised
Smallest selling unit: 1 piece
1piece
Description

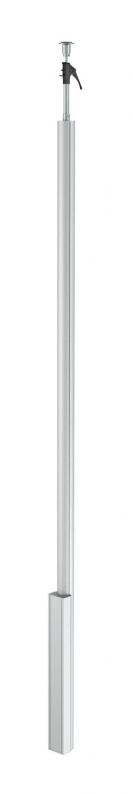

ISS aluminium service pole with a thin tube to the ceiling.
Set consists of:
1 single-compartment pole with clamping fastening
Total length 3,315‒3,480 mm
1 clamping device for clamping to the ceiling
1 equippable aluminium installation area
Length: 780 mm
In areas for device installation, the service pole has a 76.5 mm system opening and is suitable for accepting front-locking accessory mounting boxes of the series 71GD...
Set consists of:
1 single-compartment pole with clamping fastening
Total length 3,315‒3,480 mm
1 clamping device for clamping to the ceiling
1 equippable aluminium installation area
Length: 780 mm
In areas for device installation, the service pole has a 76.5 mm system opening and is suitable for accepting front-locking accessory mounting boxes of the series 71GD...
Technical data

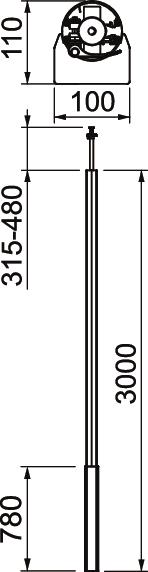

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 110 mm |
| Pole height, max. | 3480 mm |
| Pole height, min. | 3315 mm |
Technical data
| Number of compartments | 1 St. |
|---|---|
| Halogen-free | yes |
| Pole shape | Installation space, angular/pole, round |
| Adjustable | yes |
| Height compensation, max. | 480 mm |
| Height compensation, min. | 315 mm |
| Number of usable covers | 1 |
| Changes according to location | no |
| Ceiling mounting | yes |
| Floor mounting | yes |
| Cable entry | Top/bottom |
| Pre-wired | no |
| Continuous profile | no |
| Version for | Single-sided |
| Fastening type | Tension |
| Cover width | 76,5 mm |
| Dimension | 3000x100x110 |
| Surface | Anodised |
| Material | Aluminium |
| Colour | aluminium |
| CO2 Footprint (GWP) Cradle-to-Gate | 132,0844 kg CO2e / 1 Piece |
