Service pole, type ISS110100F
Type ISS110100FRW
|Item no. 6289040
|EAN 4012195477013
Item no. / Type
Length
Colour
Fastening type
Stand
Material
Aluminium
Smallest selling unit: 1 piece
1piece
piece
Description

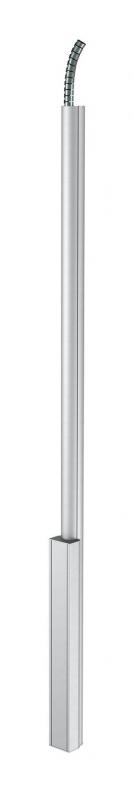

ISS aluminium service pole with a flexible hose to the ceiling.
Set consists of:
1 single-compartment pole with flexible hose to the ceiling
Total length: 2,300 mm
1 flexible hose, length: 1,500 mm
1 equippable aluminium installation compartment
Length: 780 mm
In areas for device installation, the service pole has a 76.5 mm system opening and is suitable for accepting front-locking accessory mounting boxes of the series 71GD... The floor plate as a stand, type SFISSF, and the hose connection to the ceiling, type SAISSF, should be ordered separately (see items below).
Set consists of:
1 single-compartment pole with flexible hose to the ceiling
Total length: 2,300 mm
1 flexible hose, length: 1,500 mm
1 equippable aluminium installation compartment
Length: 780 mm
In areas for device installation, the service pole has a 76.5 mm system opening and is suitable for accepting front-locking accessory mounting boxes of the series 71GD... The floor plate as a stand, type SFISSF, and the hose connection to the ceiling, type SAISSF, should be ordered separately (see items below).
Technical data
Dimensions
| Length | 2300 mm |
|---|---|
| Width | 100 mm |
| Height | 110 mm |
| Dimension A | 780 mm |
| Pole height, min. | 2300 mm |
| Pole height, max. | 3800 mm |
| Dimension B | 2300 mm |
| Dimension C | 1500 mm |
Technical data
| Number of compartments | 1 St. |
|---|---|
| Halogen-free | yes |
| Pole shape | Installation space, angular/pole, round |
| Adjustable | yes |
| Height compensation, min. | 0 mm |
| Height compensation, max. | 1500 mm |
| Number of usable covers | 1 |
| Changes according to location | yes |
| Ceiling mounting | yes |
| Floor mounting | yes |
| Cable entry | Top |
| Pre-wired | no |
| Continuous profile | no |
| Version for | Single-sided |
| Fastening type | Stand |
| Cover width | 76,5 mm |
| Dimension | 2300x100x110 |
| Material | Aluminium |
| Colour | Pure white; RAL 9010 |
| CO2 Footprint (GWP) Cradle-to-Gate | 119,7475 kg CO2e / 1 Piece |
