Service pole, sheet steel, with sheet steel cover
Type ISS70110STSRW
|Item no. 6286530
|EAN 4012195809135
Item no. / Type
6286530 / ISS70110STSRW
Length
2505 mm
Fastening type
Telescope
Material
Steel
Colour
Pure white; RAL 9010
Smallest selling unit: 1 piece
1piece
piece
Description

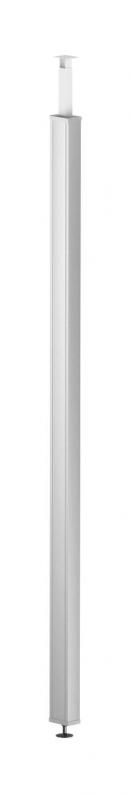

Sheet steel service pole with a 76.5 mm system opening.
Set consisting of:
1 single-compartment pole with clamping fastening
Total length 2,625–3,665 mm
1 ceiling fastening with telescopic profile
1 sheet steel cover
Length: 2,500 mm
A 2 m PVC separating retainer and 2 cover clips are contained in the scope of delivery.
The service pole is suitable for accepting accessory mounting boxes of the
series 71GD...
The service pole is pre-mounted and ready for use immediately. The following accessories can also be used, depending on the mounting situation.
Set consisting of:
1 single-compartment pole with clamping fastening
Total length 2,625–3,665 mm
1 ceiling fastening with telescopic profile
1 sheet steel cover
Length: 2,500 mm
A 2 m PVC separating retainer and 2 cover clips are contained in the scope of delivery.
The service pole is suitable for accepting accessory mounting boxes of the
series 71GD...
The service pole is pre-mounted and ready for use immediately. The following accessories can also be used, depending on the mounting situation.
Technical data

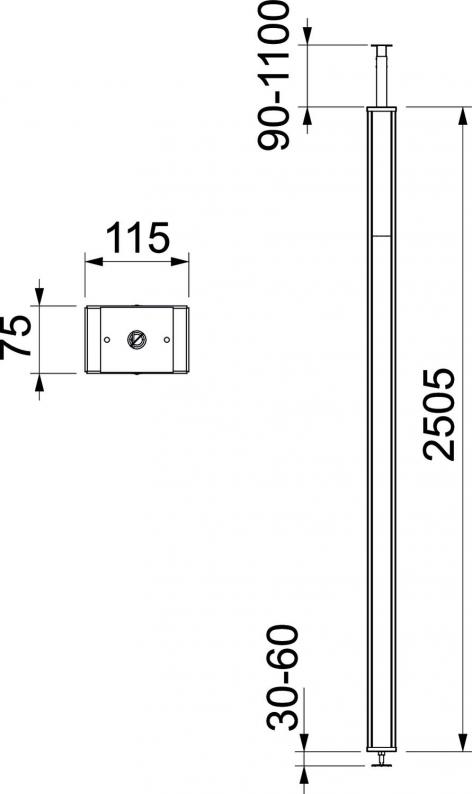

Dimensions
| Length | 2505 mm |
|---|---|
| Width | 115 mm |
| Height | 75 mm |
| Pole height, min. | 2600 mm |
| Pole height, max. | 3700 mm |
Technical data
| Number of compartments | 1 St. |
|---|---|
| Halogen-free | yes |
| Pole shape | Rectangular |
| Adjustable | yes |
| Height compensation, min. | 90 mm |
| Height compensation, max. | 1100 mm |
| Number of usable covers | 1 |
| Changes according to location | no |
| Ceiling mounting | yes |
| Floor mounting | no |
| Cable entry | Top |
| Pre-wired | no |
| Continuous profile | yes |
| Version for | Single-sided |
| Fastening type | Telescope |
| Cover width | 76,5 mm |
| Dimension | 2505x115x75 |
| Material | Steel |
| Colour | Pure white; RAL 9010 |
| Product series | ISS |
Environmental Data
42,0418 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 42,0418 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 42,0418 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
