Service pole, sheet steel, with PVC cover

Type ISS70110STKRW | Item no. 6286540 | EAN 4012195809142

Data sheet (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

6286540 / ISS70110STKRW

Fastening type

Telescope

Material

Steel

Colour

Pure white; RAL 9010

Smallest selling unit: 1 piece

Description Technical data Downloads Accessories Variants

Description

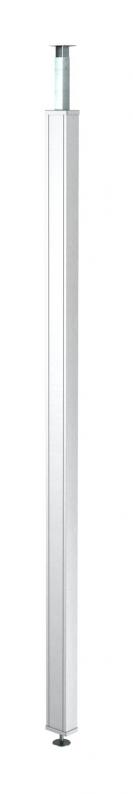

Sheet steel service pole with a 76.5 mm system opening.

Set consisting of:

1 single-compartment pole with clamping fastening

Total length 2,625–3,665 mm

1 ceiling fastening with telescopic profile

1 PVC cover

Length: 2,500 mm

A 2 m PVC separating retainer and 2 cover clips are contained in the scope of delivery.

The service pole is suitable for accepting accessory mounting boxes of the

series 71GD...

The service pole is pre-mounted and ready for use immediately. The following accessories can also be used, depending on the mounting situation.

Technical data

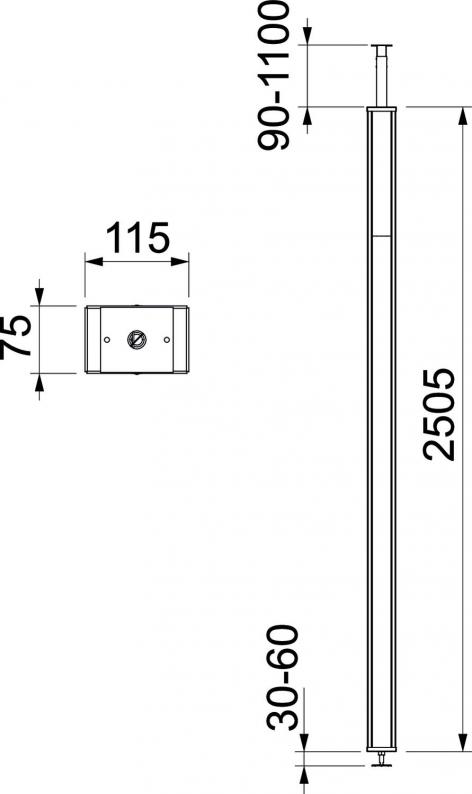

Dimensions

Length	2505 mm
Width	115 mm
Height	75 mm
Pole height, max.	3700 mm
Pole height, min.	2600 mm

Technical data

Number of compartments	1 St.
Halogen-free	no
Pole shape	Rectangular
Adjustable	yes
Height compensation, max.	1100 mm
Height compensation, min.	90 mm
Number of usable covers	1
Changes according to location	no
Ceiling mounting	yes
Floor mounting	no
Cable entry	Top
Pre-wired	no
Continuous profile	yes
Version for	Single-sided
Fastening type	Telescope
Cover width	76,5 mm
Dimension	2505x115x75
Material	Steel
Colour	Pure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate	39,4236 kg CO2e / 1 Piece
