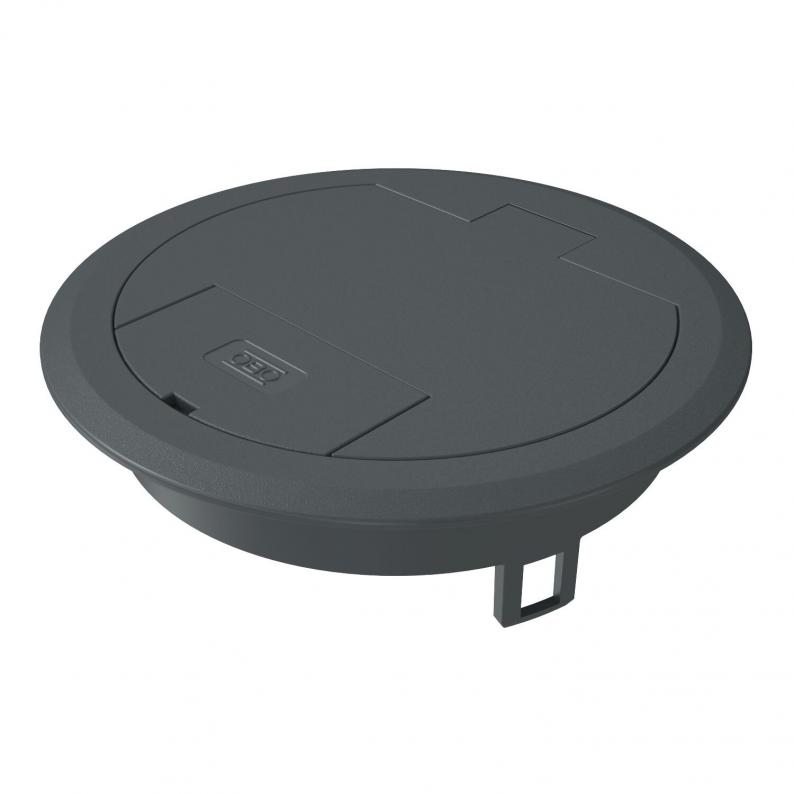

Service outlet with hinged cover and cord outlet, GES R2
Type GES R2 7011
|Item no. 7405082
|EAN 4012196459582
Item no. / Type
Colour
Floor care
Dry
Protection rating (IP) when unused
IP40
Vertical load, small area
to 500 N
Opening mechanism
Tool
Material
Polyamide
Smallest selling unit: 1 piece
1piece
piece
Description
Service outlet with hinged cover and cord outlet for GES R2 floor socket for direct installation in the MT R2 installation socket.
For use in dry-cleaned floors for indoor use.
For use in dry-cleaned floors for indoor use.
Technical data
Technical data
| Suitable for underfloor ducts | no |
|---|---|
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Suitable for wet care | no |
| External diameter | 140 mm |
| With floor covering recess | no |
| Floor covering protection frame | yes |
| Cable outlet version | Swivellable cord outlet |
| Protection rating IK code | IK10 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 500 N |
| Opening mechanism | Tool |

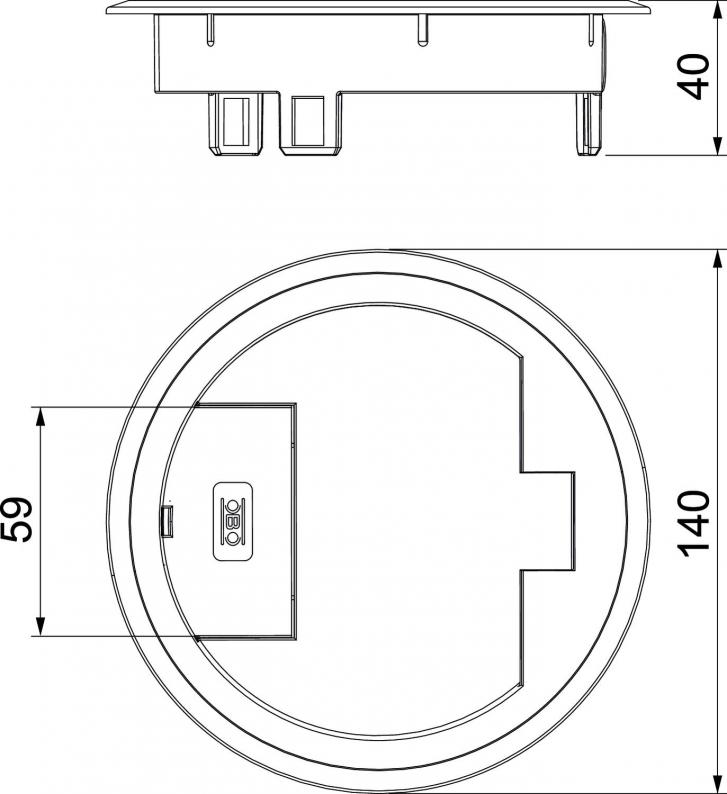

| Dimension | 140x140x40 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
Environmental Data
1,2625 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2625 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
MT R2 V
7408832
Smallest selling unit: 1 piece
1piece
piece
Item no. 7408806
Mounting plate for data technology, type CType
MP R2 2C
Smallest selling unit: 1 piece
1piece
piece
Item no. 7408832
Installation socket, double, protective contact socketsType
MT R2 V
Smallest selling unit: 1 piece
1piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Floor care
Protection rating (IP) when unused
Vertical load, small area
Opening mechanism
Material
Colour
Item no.
GES R2 7011
Dry
IP40
to 500 N
Tool
Polyamide
Iron grey; RAL 7011
7405082
GES R2 9011
Dry
IP40
to 500 N
Tool
Polyamide
Graphite black; RAL 9011
7405084
Colour
GES R2 7011
Item no.
7405082
Floor care
Dry
Protection rating (IP) when unused
IP40
Vertical load, small area
to 500 N
Opening mechanism
Tool
Material
Polyamide
Colour
Iron grey; RAL 7011
GES R2 9011
Item no.
7405084
Floor care
Dry
Protection rating (IP) when unused
IP40
Vertical load, small area
to 500 N
Opening mechanism
Tool
Material
Polyamide
Colour
Graphite black; RAL 9011
