Service outlet GRAF9-2 BA3, wet-cleaned with floor covering recess
Type GRAF9-2 BA3
|Item no. 7405743
|EAN 4012196581634
Item no. / Type
7405743 / GRAF9-2 BA3
Nominal size for device installation units
R9
Smallest selling unit: 1 piece
1piece
piece
Description
Service outlet with tube body for wet-cleaned floors for up to 12 individual Modul 45 devices in 3 UT4 universal supports, use in duct or trunking systems and system floors for indoor use.
Aluminium surface, polished, with a floor covering recess of 3 mm. For an installation depth of 65 mm.
Service outlet for tube bodies for wet-cleaned floors, 3-compartment, for the installation of mounting support MT9. Three cover paltes of type APMT5 can be installed. Application in trunking systems and in system floor in indoor areas.
Aluminium-polished surface with a floor covering recess of 3 mm For an installation depth of 65 mm.
Aluminium surface, polished, with a floor covering recess of 3 mm. For an installation depth of 65 mm.
Service outlet for tube bodies for wet-cleaned floors, 3-compartment, for the installation of mounting support MT9. Three cover paltes of type APMT5 can be installed. Application in trunking systems and in system floor in indoor areas.
Aluminium-polished surface with a floor covering recess of 3 mm For an installation depth of 65 mm.
Up to 9 installation devices can be used with a 50 mm central plate.
Technical data
Technical data
| Floor height, min. | 80 mm |
|---|---|
| Floor covering thickness | 3 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | yes |
| Number of installable devices | 12 |
| Seal installation option | yes |
| Installation diameter | 305 |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Frame version | Carpet protection frame |
| Number of mounting boxes | 3 |
| Suitable for wet care | yes |
| External diameter | 325 mm |
| With floor covering recess | yes |
| Floor covering protection frame | yes |
| Cable outlet version | Lowerable tube body |
| Protection rating IK code | IK10 |
| Installation system type | UT4 |
| Heavy-duty version | yes |
| Nominal size for device installation units | R9 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP45 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 10,000 N |
| Version for | Round |
| Opening mechanism | Sash lock |
| Clamping range D, min. | 4 mm |
| Clamping range D, max. | 73 mm |

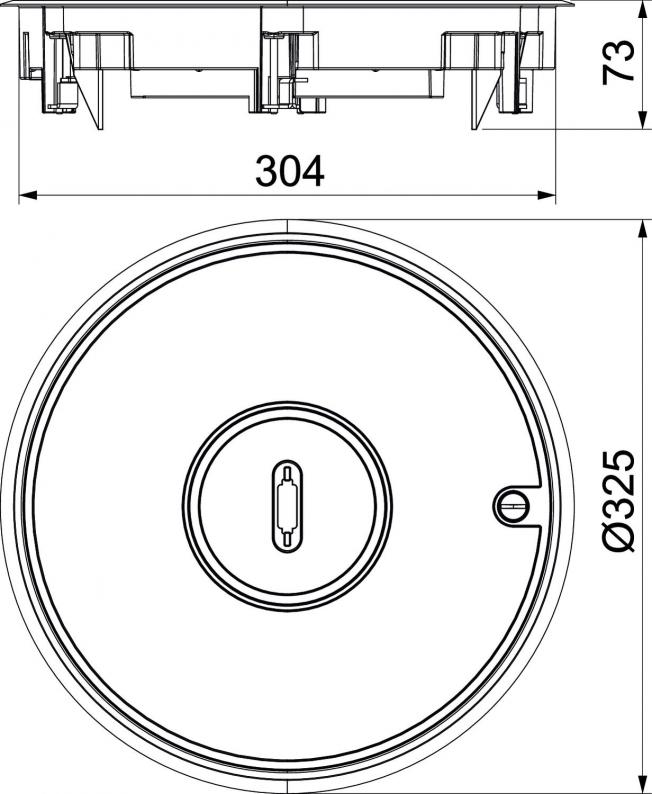

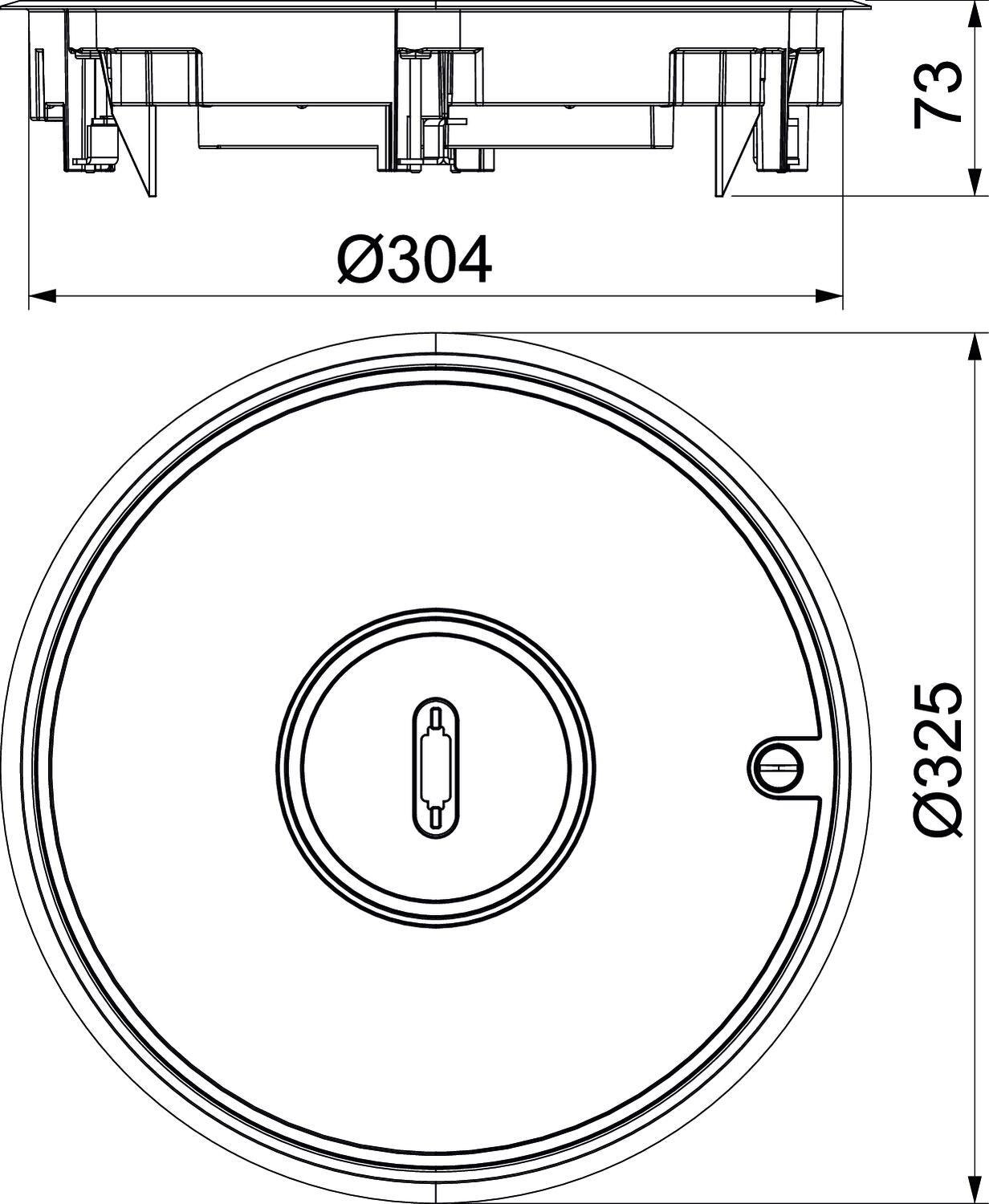

| Dimension | Ø325x73 |
| Material | Cast aluminium |
Environmental Data
4,2742 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,2742 kg CO2e / 1 Piece |
|---|
