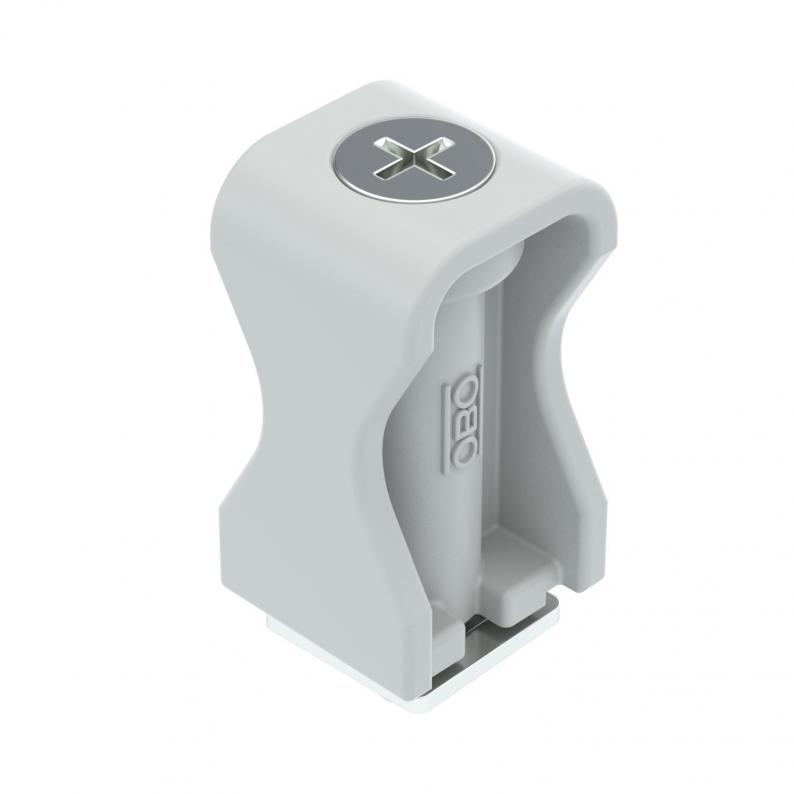

Series clip, light grey
Type 2054 14-48 LGR | Item no. 2255014 | EAN 4012195222798
Item no. / Type
2255014 / 2054 14-48 LGR
Bolt
M8 x 60
Colour
Light grey; RAL 7035
Smallest selling unit: 25 piece
25piece
Description
Heavyweight version, also suitable for rails of 16 ÷ 17 mm slot width; polyamide clip element, light grey RAL 7035; Metal parts: Electrogalvanised steel.
Technical data
Technical data
| for rail with slot width (with interval), max. | 17 mm |
|---|---|
| for rail with slot width (with interval), min. | 16 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| UV-resistant | no |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Number of cables/pipes | 1 |
| Bolt | M8 x 60 |
| Version for | Two-lobe |
| Fastening type | Rail fastening |
| Clamping range D, max. | 48 mm |
| Clamping range D, min. | 14 mm |
| Dimension | 14-48mm |
| Material | Polyamide |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1722 kg CO₂e / 1 Piece |

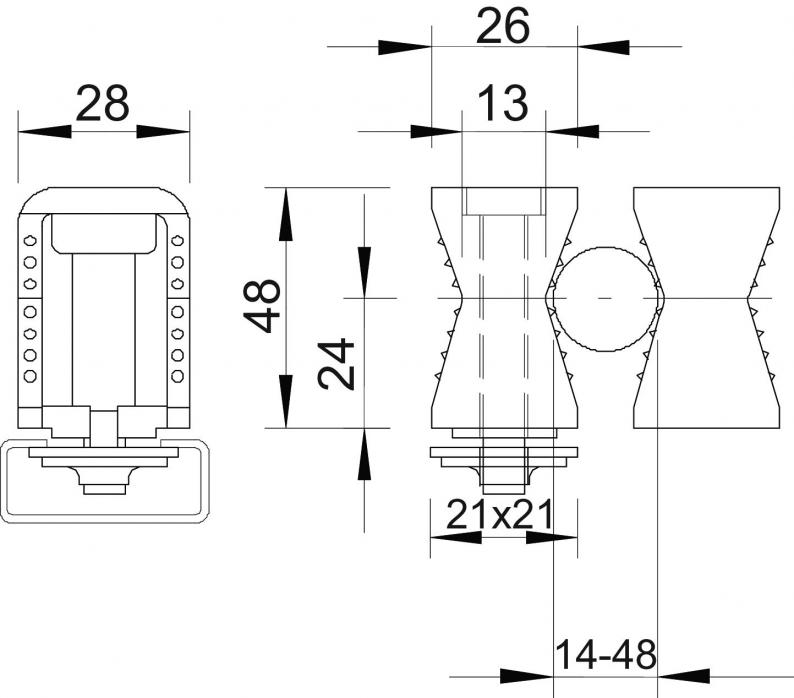

Dimensions
| Dimension B | 26 mm |
|---|---|
| Dimension H | 48 mm |
| Dimension H1 | 24 mm |
| Dimension B1 | 14,5 mm |
