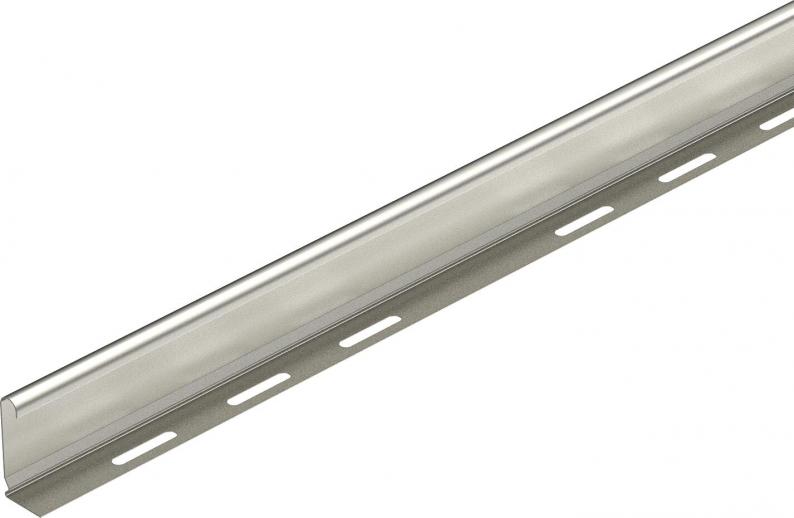

Separating retainer 60 A2
Type TSG 60 A2 | Item no. 6062084 | EAN 4012195694557
Item no. / Type
6062084 / TSG 60 A2
Colour
stainless steel
Smallest selling unit: 3 m
3m
Description
Separating retainer for the separation of cables of different voltages or functions.
Technical data

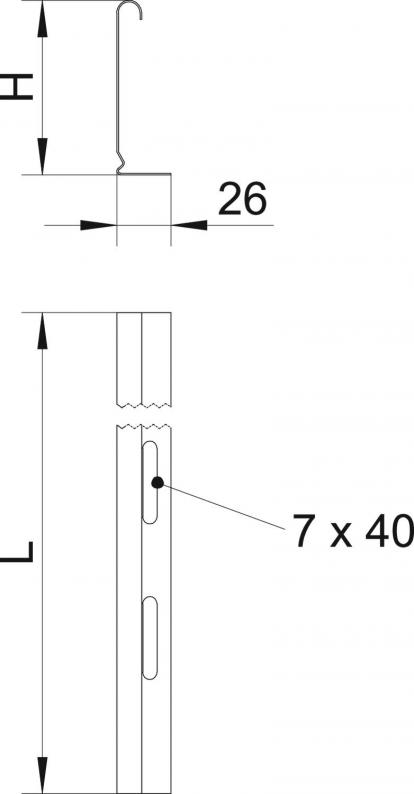

Dimensions
| Length | 3000 mm |
|---|---|
| Height | 60 mm |
| Dimension L | 3000 mm |
| Dimension H | 60 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 0,75 mm |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Fastening perforation (ETIM) | no |
| Version for | L profile |
| Fastening type | Screw-on |
| Dimension | 60x2995 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,8887 kg CO2e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (4)
Instructions and Aid (5)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
KS KR A2
6062280
Smallest selling unit: 30 piece
30piece
KS GR A2
6062282
Smallest selling unit: 30 piece
30piece
KS KL A2
6062284
Smallest selling unit: 30 piece
30piece
KS MKS SKS FS
6062300
Smallest selling unit: 100 piece
100piece
Item no. 6062280
Clamping piece for separating retainer fastening in RKSM A2Type
KS KR A2
Smallest selling unit: 30 piece
30piece
Item no. 6062282
Clamping piece for separating retainer fasteningType
KS GR A2
Smallest selling unit: 30 piece
30piece
Item no. 6062284
Clamping piece for separating retainer fastening A2Type
KS KL A2
Smallest selling unit: 30 piece
30piece
Variants
Type
Length
Height
Colour
Item no.
TSG 60 A2
3000
60
stainless steel
6062084
TSG 60 A2
Item no.
6062084
Length
3000
Height
60
Colour
stainless steel
