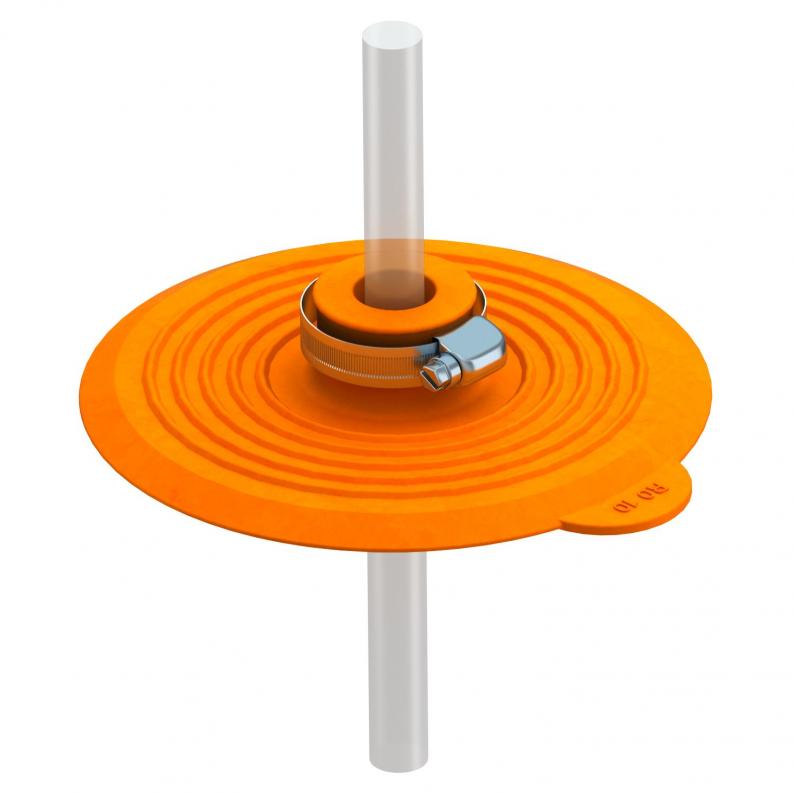

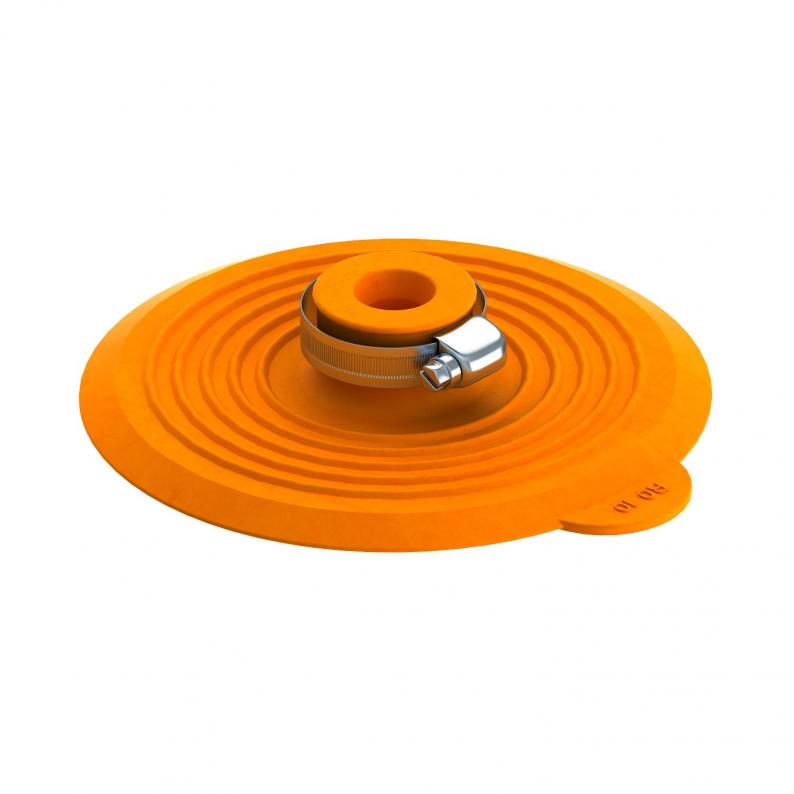

Sealing sleeve for round cables
Type DW RD10 | Item no. 2360041 | EAN 4012196421046
Item no. / Type
2360041 / DW RD10
Smallest selling unit: 1 piece
1piece
Description
• Sealing sleeve for penetrations of waterproof foundation plates/walls
(e.g. white trough)
• For mounting on connection lugs with stainless steel tightening straps
• With pressurised water testing to 5 bar
• According to DIN EN 62561-5 (VDE 0185-561-5)
(e.g. white trough)
• For mounting on connection lugs with stainless steel tightening straps
• With pressurised water testing to 5 bar
• According to DIN EN 62561-5 (VDE 0185-561-5)
Technical data
Technical data

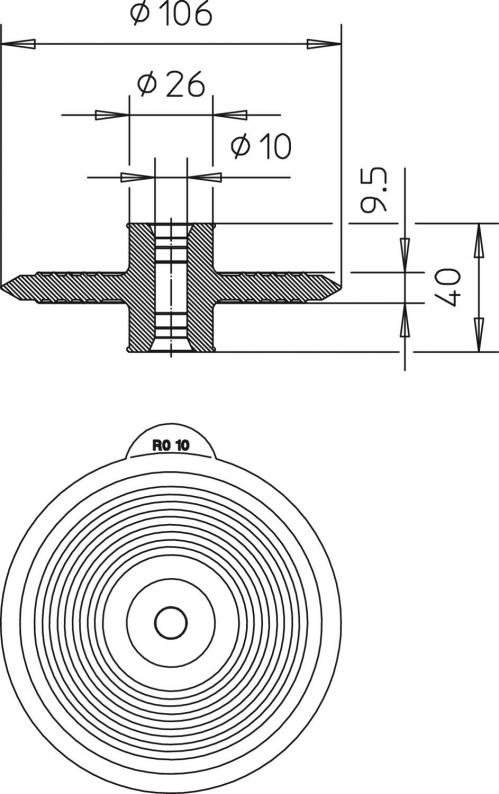

| Fit | RD 10 mm |
|---|---|
| Dimension | RD10 |
| Material | Thermoplastic elastomer |
| Colour | Pastel orange; RAL 2003 |
