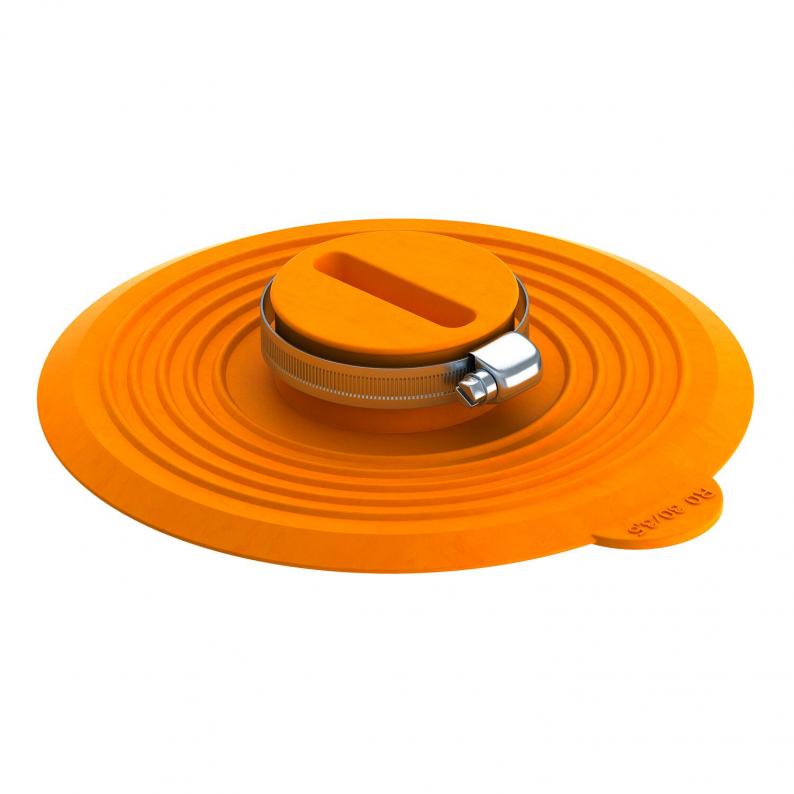

Sealing sleeve for flat conductors
Type DW FL30x3,5 | Item no. 2360043 | EAN 4012196421053
Item no. / Type
2360043 / DW FL30x3,5
Smallest selling unit: 1 piece
1piece
Description
• Sealing sleeve for penetrations of waterproof foundation plates/walls
(e.g. white trough)

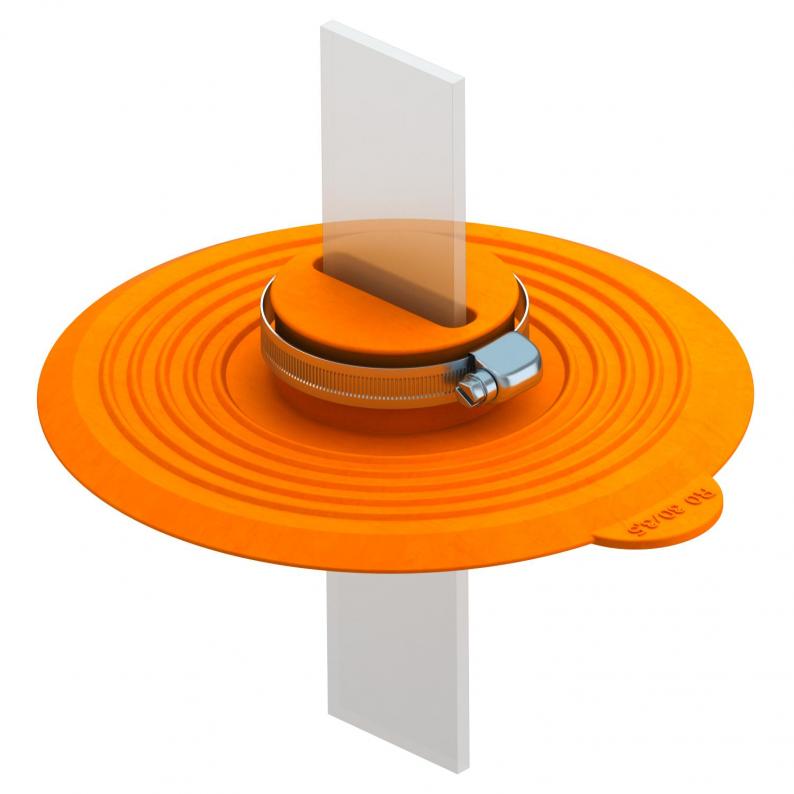

• For mounting on connection lugs with stainless steel tightening straps
• With pressurised water testing to 5 bar
• According to DIN EN 62561-5 (VDE 0185-561-5)
(e.g. white trough)
• For mounting on connection lugs with stainless steel tightening straps
• With pressurised water testing to 5 bar
• According to DIN EN 62561-5 (VDE 0185-561-5)
Technical data
Technical data
| Fit | FL 30x3,5 mm |
|---|---|
| Dimension | 30x3,5 |
| Material | Thermoplastic elastomer |
| Colour | Pastel orange; RAL 2003 |
