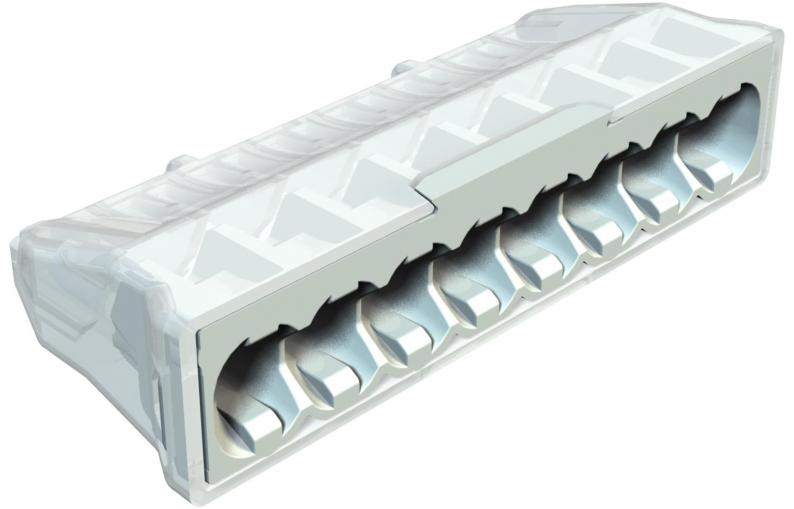

Screwless terminal, 8-pole
Type 61 825 LGR | Item no. 2054523 | EAN 4012195477976
Item no. / Type
2054523 / 61 825 LGR
No. of terminals
8
Colour
Light grey; RAL 7035
Smallest selling unit: 50 piece
50piece
Description
Screwless terminal to connect single-strand cables.
Nominal cross-section:
8 x 0.5 mm² to 2.5 mm² single-wire conductor
8 x 1.5 mm² to 2.5 mm² rigid, multi-wire conductor
Rated voltage 450 V.
Rated current 24 A.
Stripping length: 8–9 mm.
Inspection opening: phase tester and testing pin (max. Ø 2 mm).
Nominal cross-section:
8 x 0.5 mm² to 2.5 mm² single-wire conductor
8 x 1.5 mm² to 2.5 mm² rigid, multi-wire conductor
Rated voltage 450 V.
Rated current 24 A.
Stripping length: 8–9 mm.
Inspection opening: phase tester and testing pin (max. Ø 2 mm).
Technical data

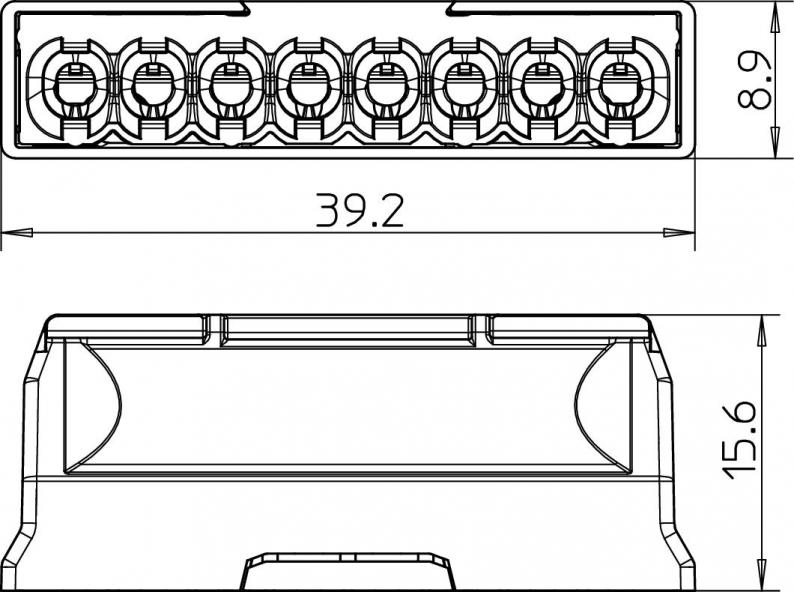

Dimensions
| Length | 39,2 mm |
|---|---|
| Width | 15,6 mm |
| Height | 8,9 mm |
Technical data
| Pole number | 8 |
|---|---|
| Nominal current | 24 A |
| Nominal voltage | 450 V |
| Suitable for solid conductors | no |
| Suitable for flexible conductors | no |
| Suitable for multi-wire conductors | yes |
| With actuating levers | no |
| Connectable conductor cross-section, single-wire, max. | 2,5 mm² |
| Connectable conductor cross-section, single-wire, min. | 0,5 mm² |
| Connectable conductor cross-section, multi-wire, max. | 2,5 mm² |
| Connectable conductor cross-section, multi-wire, min. | 1,5 mm² |
| Nominal cross-section, max. | 2,5 mm² |
| Nominal cross-section, min. | 0,5 mm² |
| Cross-section | 8 x 0.5 mm² to 2.5 mm² single-wire conductor 8 x 1.5 mm² to 2.5 mm² rigid, multi-wire conductor mm² |
| No. of terminals | 8 |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -5 °C |
| Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C |
| Dimension | 8x2,5mm² |
| Material | Polyamide |
| Colour | Light grey; RAL 7035 |
