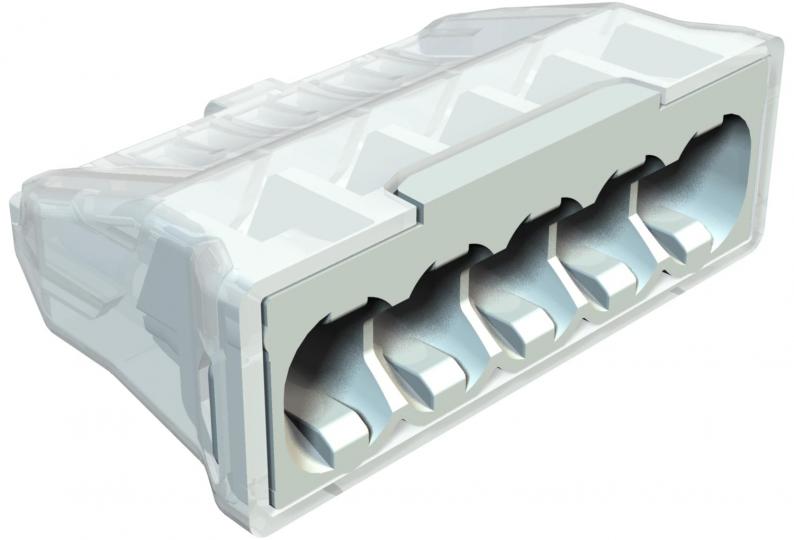

Screwless terminal, 5-pole

Type 61 525 LGR | Item no. 2054507 | EAN 4012195825319

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

2054507 / 61 525 LGR

No. of terminals

Colour

Light grey; RAL 7035

Smallest selling unit: 100 piece

Description Technical data Downloads Variants

Description

Screwless terminal to connect single-strand cables.
Nominal cross-section:
5 x 0.5 mm² to 2.5 mm² single-wire cable

5 x 1.5 mm² to 2.5 mm² rigid, multi-wire cable
Rated voltage 450 V.
Rated current 24 A.
Stripping length: 8–9 mm.
Inspection opening: phase tester and testing pin (max. Ø 2 mm).

Technical data

Dimensions

Length	26 mm
Width	15,6 mm
Height	8,9 mm

Technical data

Pole number	5
Nominal current	24 A
Nominal voltage	450 V
Suitable for solid conductors	no
Suitable for flexible conductors	no
Suitable for multi-wire conductors	yes
With actuating levers	no
Connectable conductor cross-section, single-wire, max.	2,5 mm²
Connectable conductor cross-section, single-wire, min.	0,5 mm²
Connectable conductor cross-section, multi-wire, max.	2,5 mm²
Connectable conductor cross-section, multi-wire, min.	1,5 mm²
Nominal cross-section, max.	2,5 mm²
Nominal cross-section, min.	0,5 mm²
Cross-section	5 x 0.5 mm² to 2.5 mm² single-wire cable 5 x 1.5 mm² to 2.5 mm² rigid, multi-wire cable mm²
No. of terminals	5
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Flame-resistant	Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C
Dimension	5x2,5mm²
Material	Polyamide
Colour	Light grey; RAL 7035
