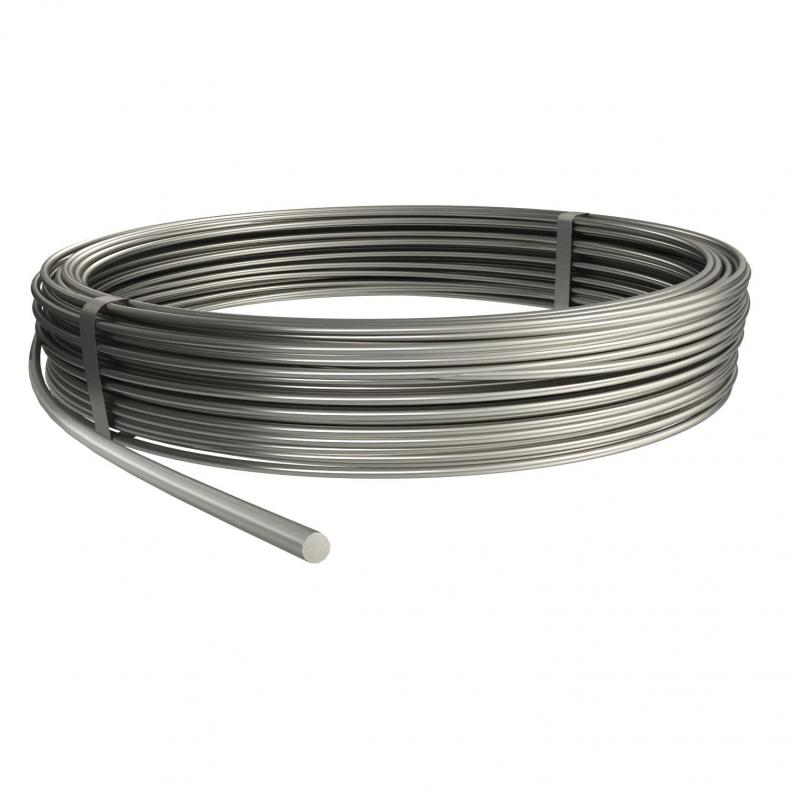

Round conductor, stainless steel A4
Type RD 10-V4A | Item no. 5021642 | EAN 4012195902058
Item no. / Type
Diameter
Normal ring (ca. kg)
Cross-section
Nomal ring (approx. m)
Material
Smallest selling unit: 50 m
50m
Description
• Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 10-V4A for applications in the earth
• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 10-V4A for applications in the earth
• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
Technical data
Technical data
| Diameter | 10 mm |
|---|---|
| Normal ring (ca. kg) | 32 |
| High voltage-resistant, insulated version | no |
| Number of individual wires | 1 |
| Material property | Miscellaneous |
| Material jacket | Without |
| Cross-section | 78 mm² |
| Nomal ring (approx. m) | 50 |
| Dimension | 10mm |
| Material | Stainless steel 1.4571/1.4404 |
| Length tolerance ± | 5 % |
Dimensions
| Dimension D | 10 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (3)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
252 8-10 V4A
5312318
Smallest selling unit: 10 piece
10piece
252 8-10x16 V4A
5312346
Smallest selling unit: 10 piece
10piece
253 8-10 V4A
5312582
Smallest selling unit: 25 piece
25piece
252 8-10xFL30V4A
5312656
Smallest selling unit: 10 piece
10piece
250 V4A
5312925
Smallest selling unit: 10 piece
10piece
Item no. 5312318
Cross-connector with intermediate plate for Rd 8−10 mm A4Type
252 8-10 V4A
Smallest selling unit: 10 piece
10piece
Item no. 5312346
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4Type
252 8-10x16 V4A
Smallest selling unit: 10 piece
10piece
Item no. 5312582
Cross-connector round/round without intermediate plate A4Type
253 8-10 V4A
Smallest selling unit: 25 piece
25piece
Variants
Type
Diameter
Normal ring (ca. kg)
Cross-section
Nomal ring (approx. m)
Material
Item no.
RD 8-V2A
8
50
50
125
Stainless steel 1.4301
5021235
RD 10-V4A
10
32
78
50
Stainless steel 1.4571/1.4404
5021642
RD 10-V4A
10
50
78
80
Stainless steel 1.4571/1.4404
5021647
Diameter
Normal ring
(ca. kg)
Cross-section
Nomal ring
(approx. m)
Material
RD 8-V2A
Item no.
5021235
Diameter
8
Normal ring (ca. kg)
50
Cross-section
50
Nomal ring (approx. m)
125
Material
Stainless steel 1.4301
RD 10-V4A
Item no.
5021642
Diameter
10
Normal ring (ca. kg)
32
Cross-section
78
Nomal ring (approx. m)
50
Material
Stainless steel 1.4571/1.4404
RD 10-V4A
Item no.
5021647
Diameter
10
Normal ring (ca. kg)
50
Cross-section
78
Nomal ring (approx. m)
80
Material
Stainless steel 1.4571/1.4404
