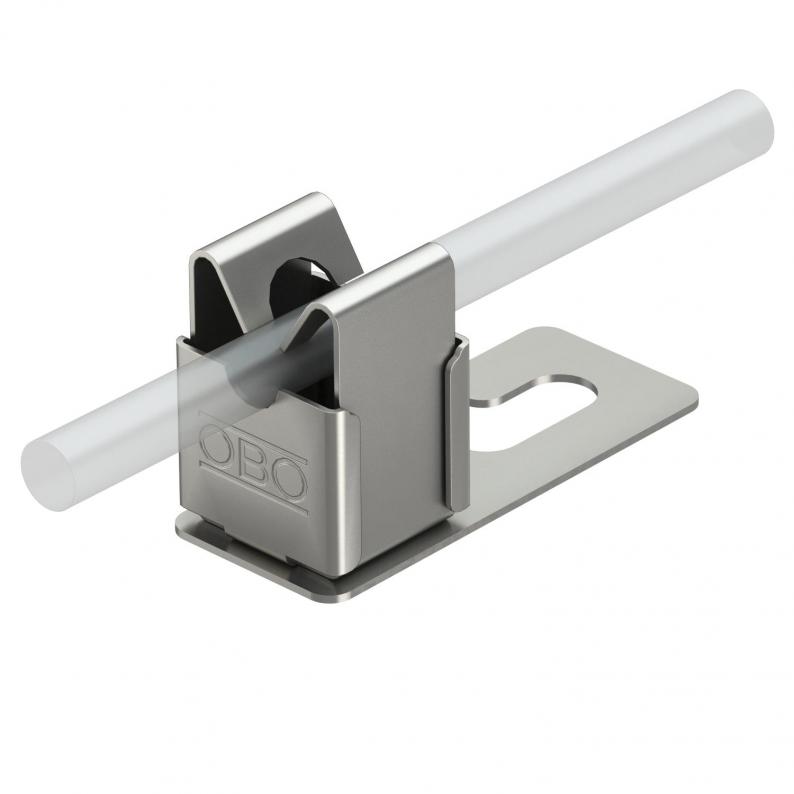

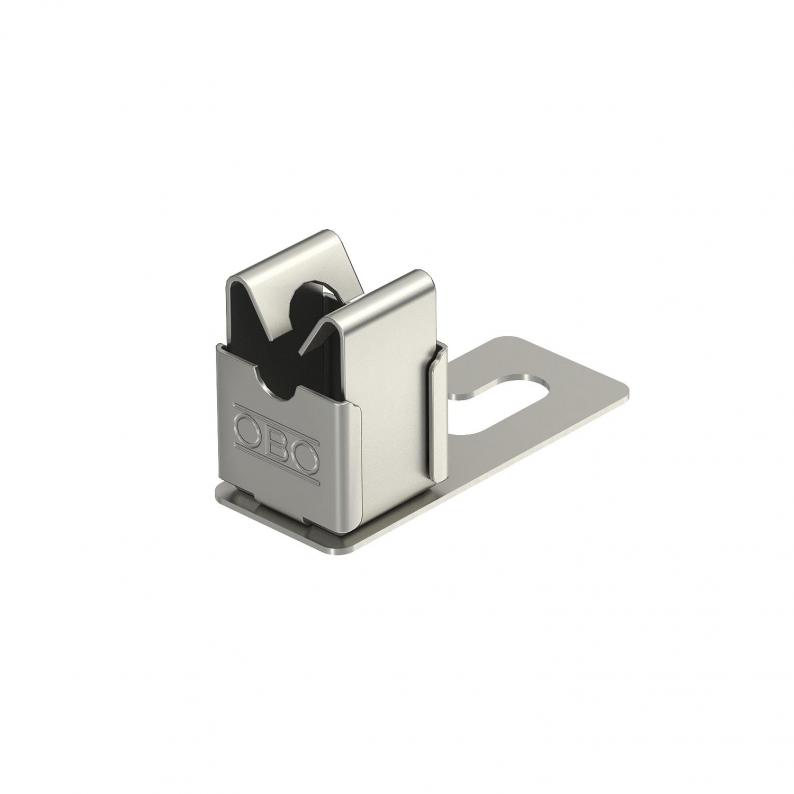

Roof conductor holder for tiled, slated and corrugated roofs, Rd 8, A2
Type 159 VA-V | Item no. 5217075 | EAN 4012195407959
Item no. / Type
5217075 / 159 VA-V
Smallest selling unit: 20 piece
20piece
Description
• Bottom section and conductor holder stainless steel (V2A)
• Bottom section with Ø 8.5 mm slot
• Bottom section with Ø 8.5 mm slot
Technical data
Technical data
| Mounting height | 21 mm |
|---|---|
| Conductor diameter, max. | 8 |
| Conductor diameter, min. | 8 |
| Conductor fastening type | With clip |
| Application | Corrugated roof |
| Mounting type | Screw-on |
| Fit | Rd 8 mm |
| Dimension | 8mm |
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1782 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (3)
3D data downloads (3)
Tender specifications (2)
Variants
Type
Mounting height
Fit
Item no.
159 VA-V
21
Rd 8
5217075
159 VA-V
Item no.
5217075
Mounting height
21
Fit
Rd 8
