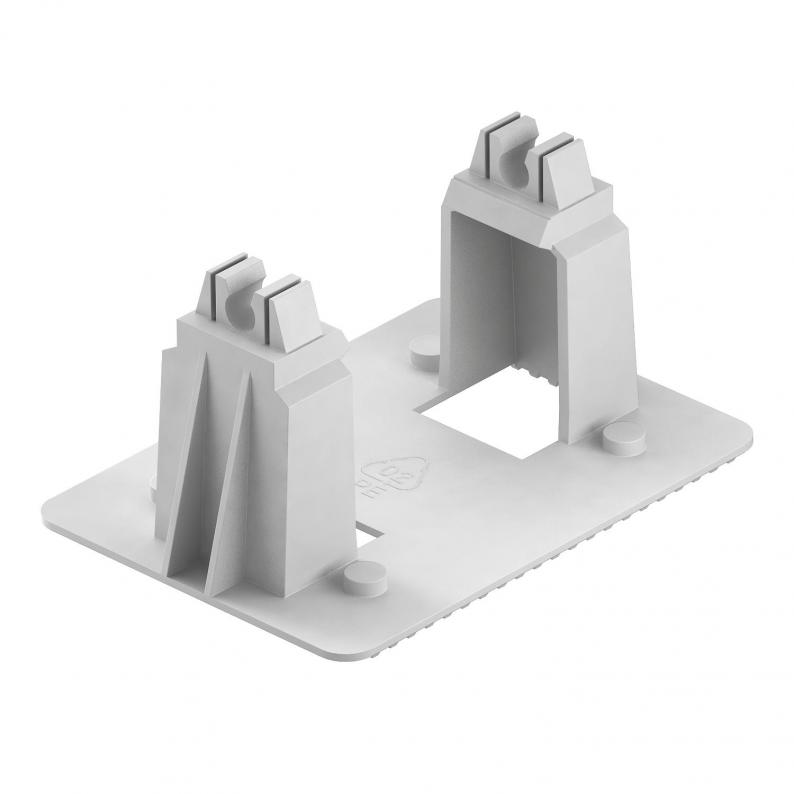

Roof conductor holder, for plastic film roofs
Type 165 R-8-10 OBG
|Item no. 5218999
|EAN 4012196388196
Item no. / Type
5218999 / 165 R-8-10 OBG
Smallest selling unit: 100 piece
100piece
piece
Description
• For flat roofs
• For round conductors Rd 8 to 10
• Polyethylene plastic holder, light grey
• For clamping in roof strips

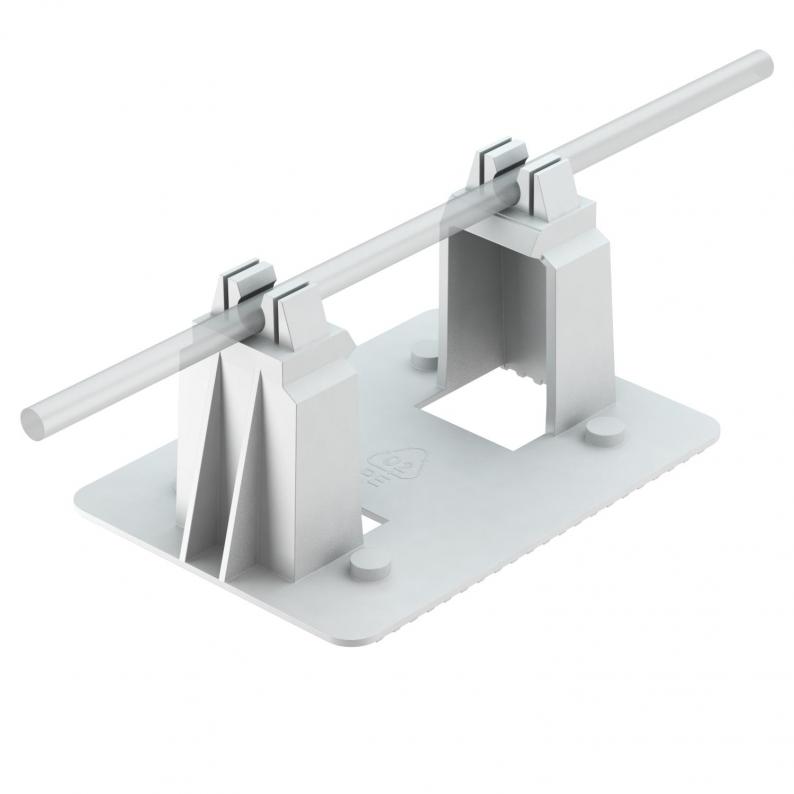

• When installing round conductors, expansion elements are to be used for thermal compensation
• For round conductors Rd 8 to 10
• Polyethylene plastic holder, light grey
• For clamping in roof strips
• When installing round conductors, expansion elements are to be used for thermal compensation
Technical data

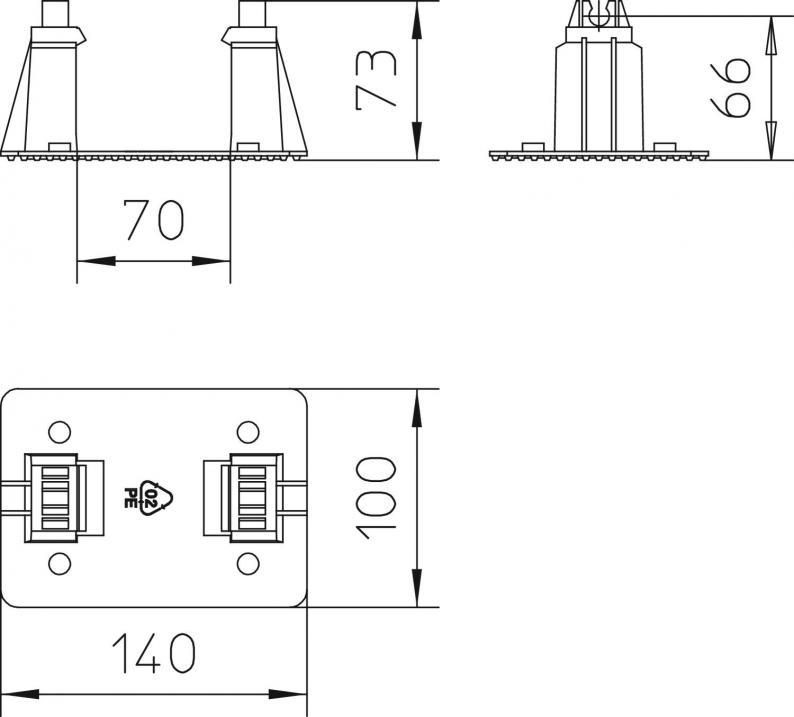

Dimensions
| Length | 140 mm |
|---|---|
| Width | 100 mm |
| Height | 60 mm |
Technical data
| Conductor diameter, min. | 8 |
|---|---|
| Conductor diameter, max. | 10 |
| Conductor fastening type | With clip |
| Application | Flat roof |
| Mounting type | Clampable |
| Fit | Rd 8-10 mm |
| Dimension | 8-10mm |
| Material | Polyethylene |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Fit
Item no.
165 R-8-10 OBG
140
Rd 8-10
5218999
165 R-8-10 OBG
Item no.
5218999
Length
140
Fit
Rd 8-10
