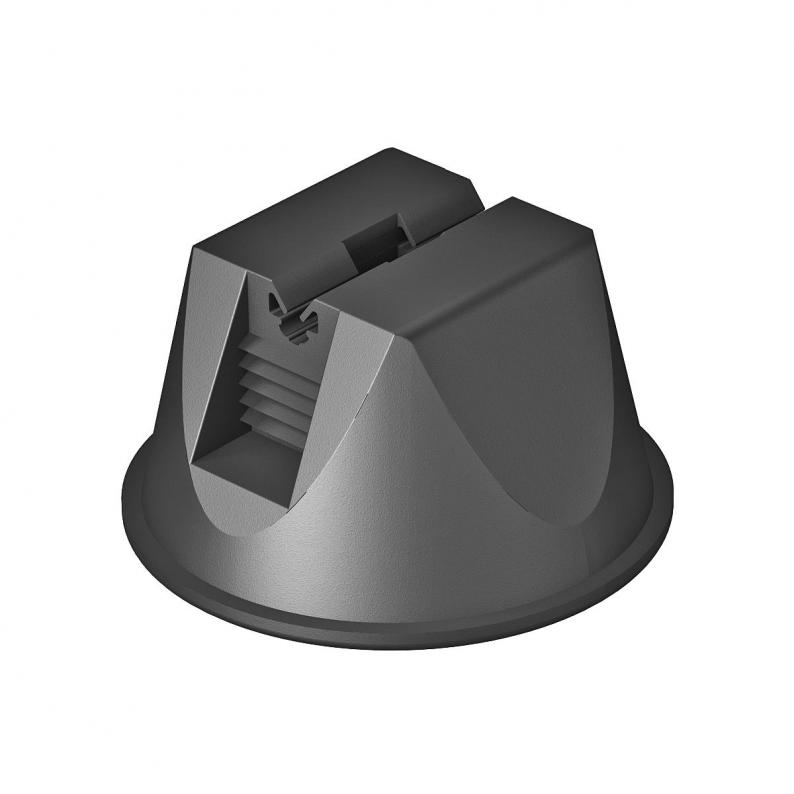

Roof conductor holder for flat roofs, without base
Type 165 OBG-8 | Item no. 5218683 | EAN 4012195408796
Item no. / Type
5218683 / 165 OBG-8
Smallest selling unit: 12 piece
12piece
Description
• Without bottom
• With double conductor holder
• Filling weight 1 kg (frost-resistant concrete)
• Sleeve from polyethylene, black
• With double conductor holder
• Filling weight 1 kg (frost-resistant concrete)
• Sleeve from polyethylene, black
Technical data

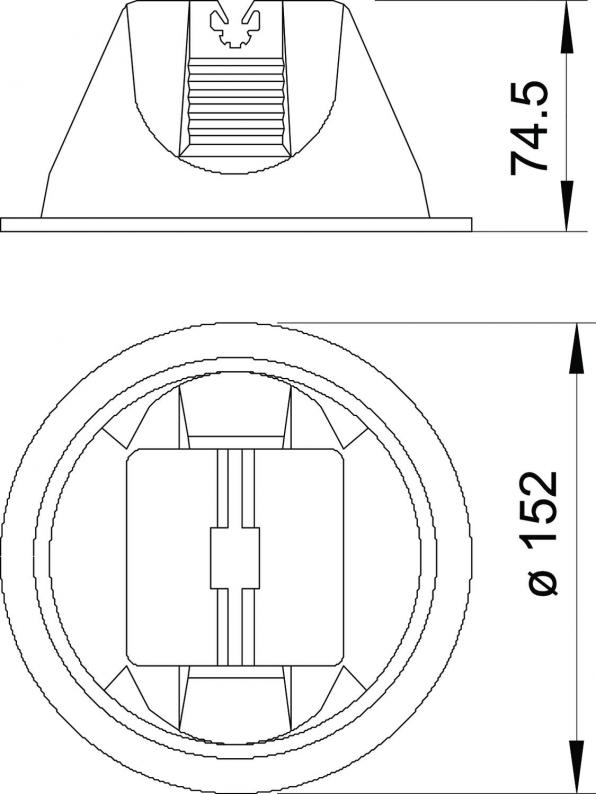

Dimensions
| Length | 152 mm |
|---|
Technical data
| Conductor diameter, max. | 8 |
|---|---|
| Conductor diameter, min. | 8 |
| Conductor fastening type | With clip |
| Application | Flat roof |
| Mounting type | Miscellaneous |
| Fit | Rd 8 mm |
| Dimension | 8mm |
| Material | Polyethylene |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4349 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Fit
Item no.
165 OBG-8
152
Rd 8
5218683
165 OBG-8
Item no.
5218683
Length
152
Fit
Rd 8
