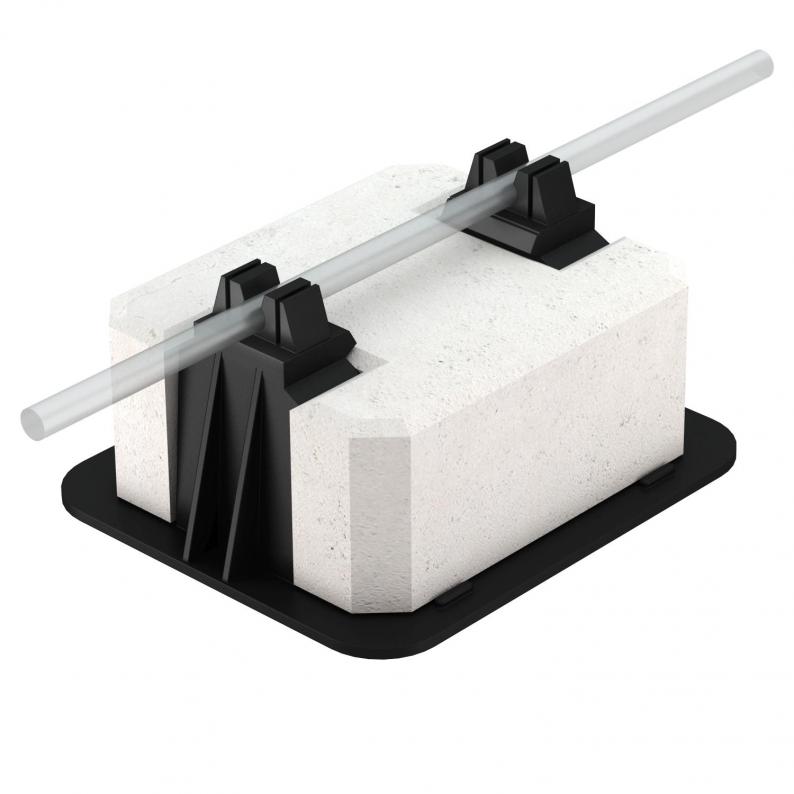

Roof conductor holder for flat roofs
Type 165 R-8-10
|Item no. 5218997
|EAN 4012195625889
Item no. / Type
5218997 / 165 R-8-10
Smallest selling unit: 10 piece
10piece
piece
Description
• For round conductors Rd 8–10
• With polyethylene plastic holder, black
• Block made of frost-resistant concrete
• Weight 1 kg
• Block can be split into plastic and concrete (recyclable)
• With polyethylene plastic holder, black
• Block made of frost-resistant concrete
• Weight 1 kg
• Block can be split into plastic and concrete (recyclable)
Technical data

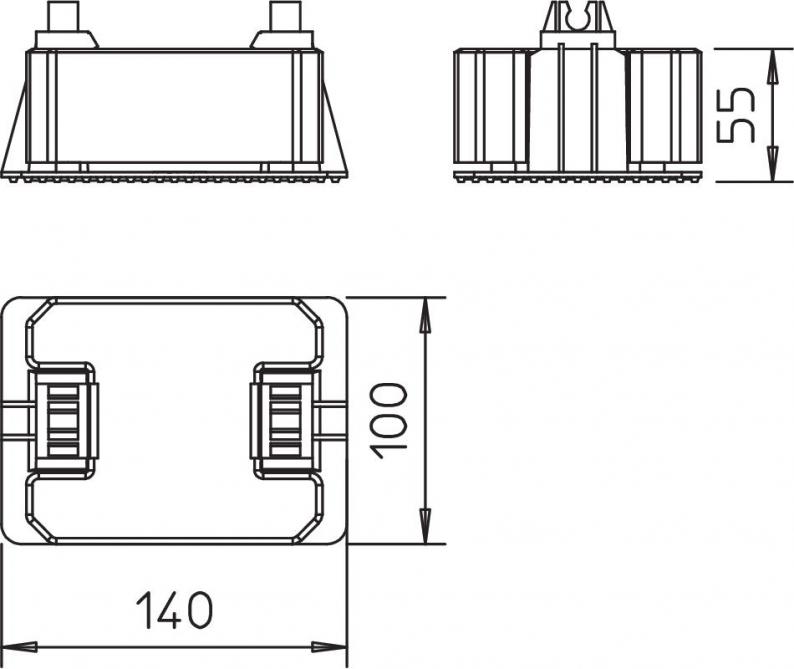

Dimensions
| Length | 140 mm |
|---|---|
| Width | 100 mm |
| Height | 73 mm |
Technical data
| Conductor diameter, min. | 8 |
|---|---|
| Conductor diameter, max. | 10 |
| Conductor fastening type | With clip |
| Application | Flat roof |
| Mounting type | Miscellaneous |
| Fit | Rd 8-10 mm |
| Dimension | 8-10mm |
| Material | Polyethylene |
