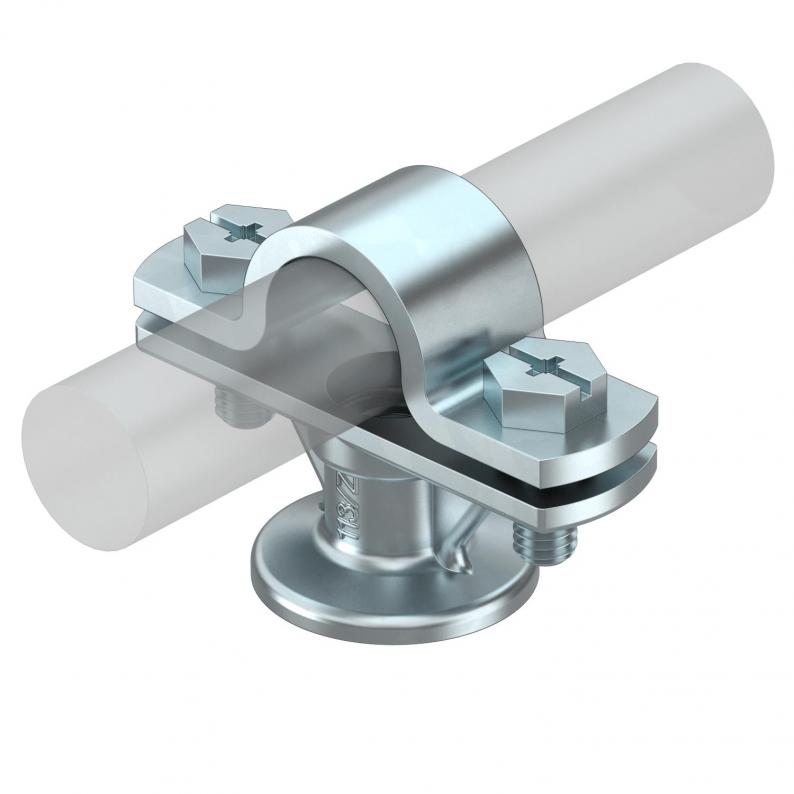

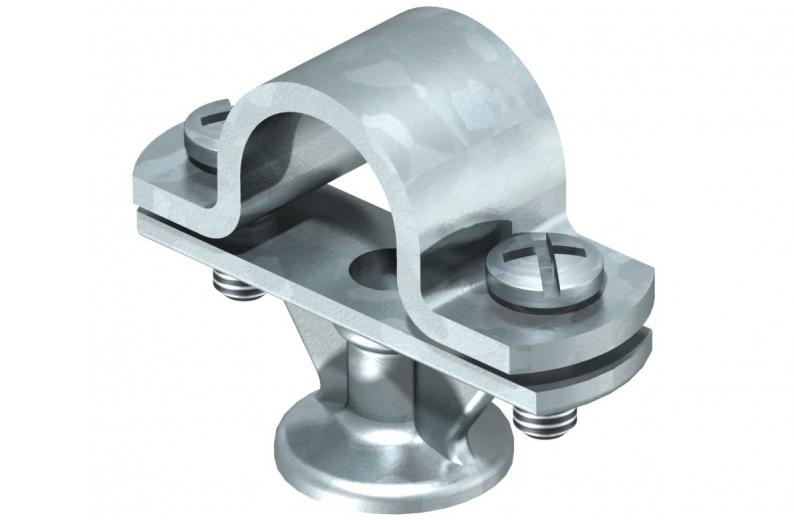

Rod holder, 20 mm
Type 113 Z-20
|Item no. 5230527
|EAN 4012195959601
Item no. / Type
5230527 / 113 Z-20
Smallest selling unit: 20 piece
20piece
piece
Description
• Installed with over-piece and hex-head screws M6 x 16
• With female thread M8 or through hole Ø 7 mm
• With female thread M8 or through hole Ø 7 mm
Technical data

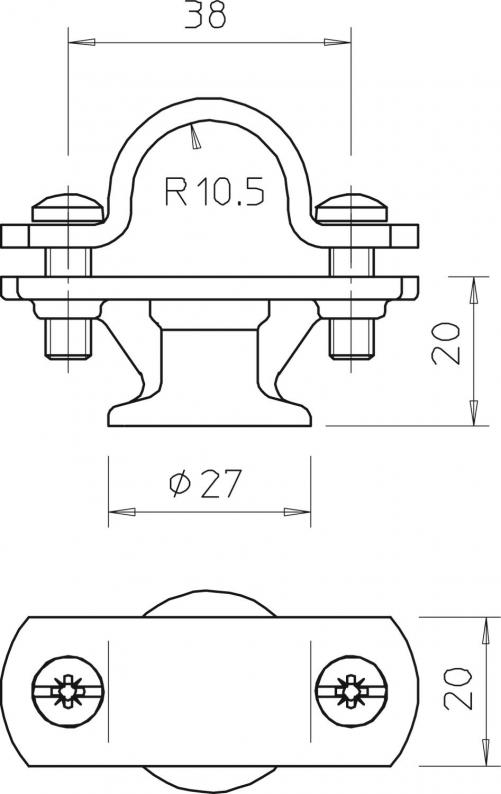

Dimensions
| Length | 56 mm |
|---|---|
| Width | 20 mm |
Technical data
| Thread metric | 8 |
|---|---|
| Rod fastening type | With screw clip |
| Holder fastening type | Drill hole with M thread |
| Fit | Rd 20 mm |
| Dimension | 20mm |
| Surface | galvanised |
| Material | Die-cast zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,289 kg CO2e / 1 Piece |
