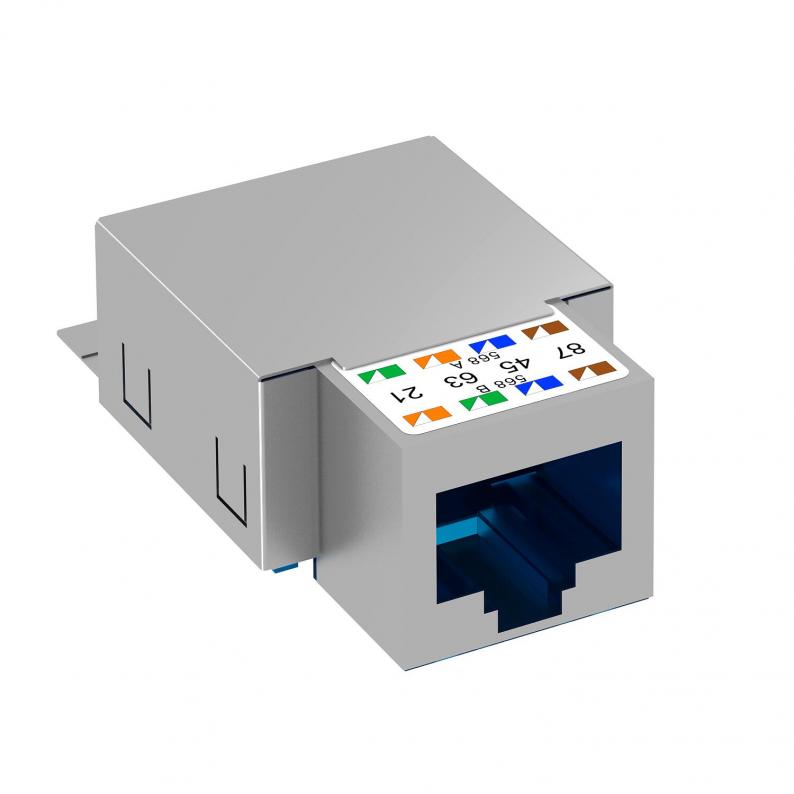

RJ45 data connection module, Cat. 6, shielded
Type ASM-C6 G
|Item no. 6117329
|EAN 4012196235216
Item no. / Type
With screening
Mounting opening
Type RM
Smallest selling unit: 1 piece
1piece
piece
Description
Connection module Cat. 6 shielded, with an RJ 45 slot. Includes an EMC screen hood, a dust cover, a cable tie and mounting instructions. Suitable for installation in data technology supports of type DTG-2RM and DTS-2RM.
Technical data

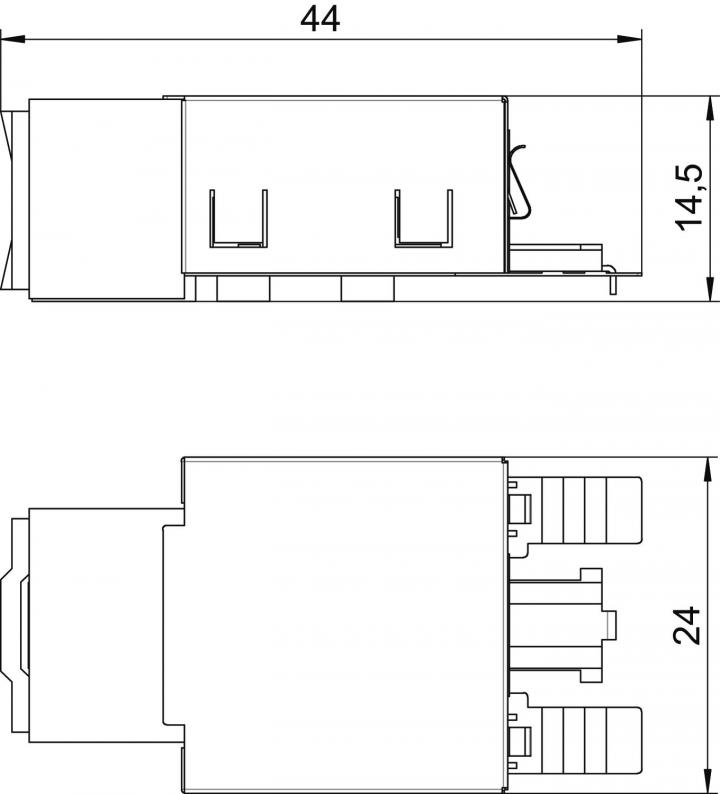

Dimensions
| Length | 44 mm |
|---|---|
| Width | 24 mm |
| Height | 14,5 mm |
Technical data
| With screening | yes |
|---|---|
| Mounting opening | Type RM |
| Category | 6 |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0478 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
With screening
Mounting opening
Item no.
ASM-C6 G
yes
Type RM
6117329
ASM-C6
no
Type RM
6117341
With screening
ASM-C6 G
Item no.
6117329
With screening
yes
Mounting opening
Type RM
ASM-C6
Item no.
6117341
With screening
no
Mounting opening
Type RM
