Quick connector
Type FCM F
|Item no. 6424548
|EAN 4012195438519
Item no. / Type
6424548 / FCM F
Thread metric
6
Smallest selling unit: 50 piece
50piece
piece
Description

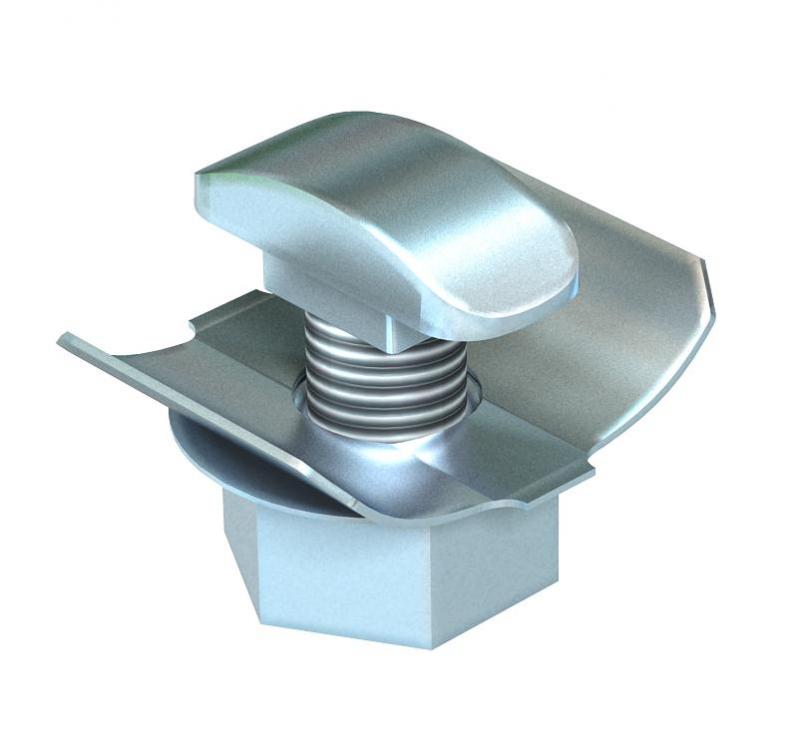

Quick connector for efficient fastening of cable tray on brackets.
The quick fastening can then be mounted in all brackets with 7 x ... perforation at a later date.
Technical data

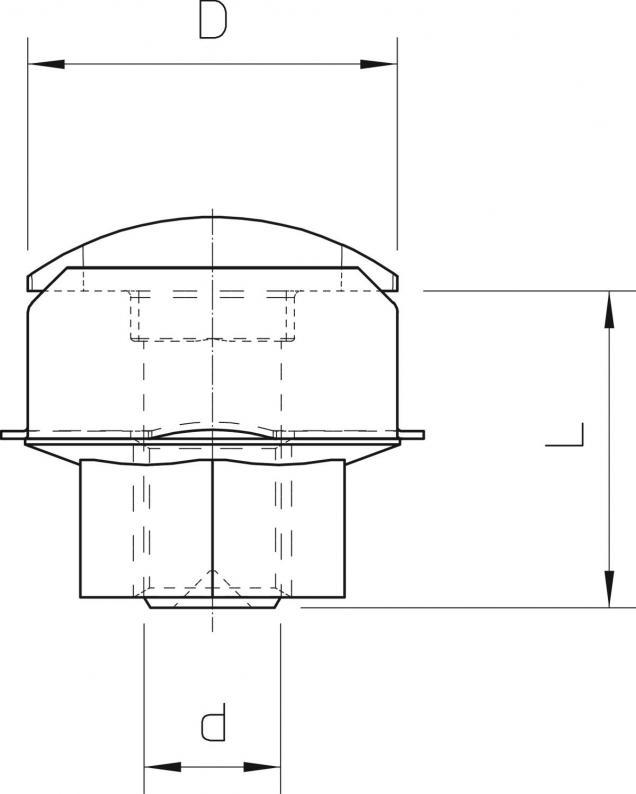

Dimensions
| Length | 12 mm |
|---|---|
| Dimension L | 12 mm |
| Dimension d | 6 mm |
| Dimension D | 13,5 mm |
Technical data
| Thread metric | 6 |
|---|---|
| Thread | M6 |
| Screw system | Hexagonal |
| Dimension | M6 x 12 |
| Dimension | M6x12 |
| Surface | Hot galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0311 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
