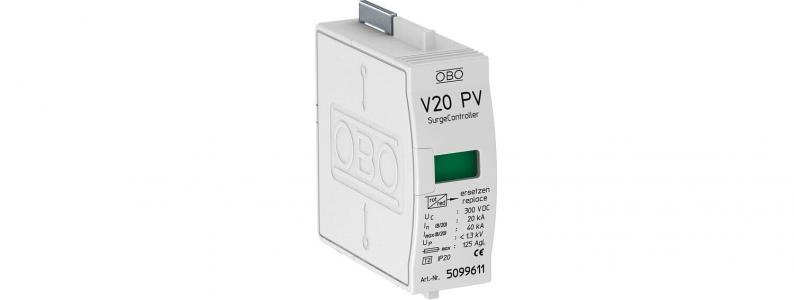

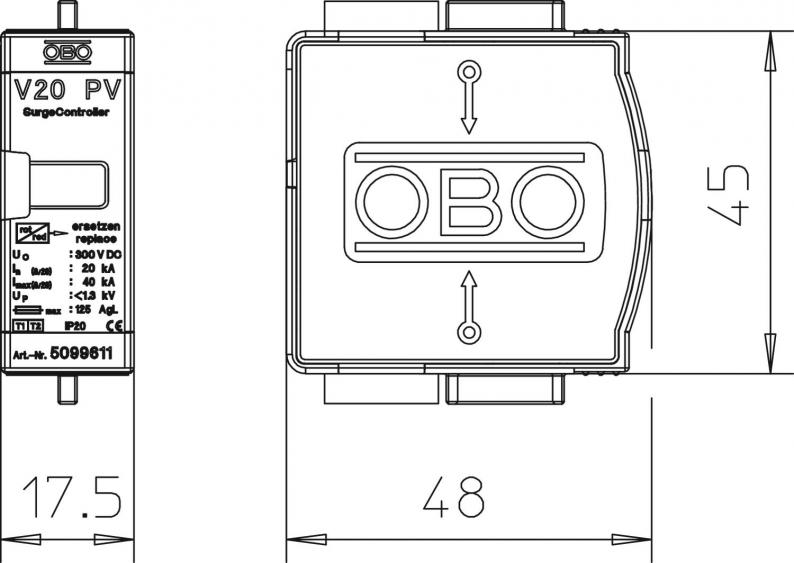

PV SurgeController V20, plug-in arrester, type 2
Type V20-C 0-300PV | Item no. 5099611 | EAN 4012195708902
Item no. / Type
Maximum continuous voltage AC
Protection rating
IP20
Pole version
1
Smallest selling unit: 1 piece
1piece
Description
SurgeController upper part - type 2, surge arrester for photovoltaic systems
• For surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity to 40 kA (8/20) per pole
• Low DC voltage protection level: < 1.3 kV per pole (Y circuit: 2.6 kV and Voc max = 600 V DC)
• Plug-in arrester with thermodynamic cut-off unit and visual function display
• Encapsulated, non-extinguishing zinc oxide varistor arrester for use in distributor housings
• High current carrying capacity with long lifespan
Application example: PV systems with or without separated insulated lightning protection system
• For surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity to 40 kA (8/20) per pole
• Low DC voltage protection level: < 1.3 kV per pole (Y circuit: 2.6 kV and Voc max = 600 V DC)
• Plug-in arrester with thermodynamic cut-off unit and visual function display
• Encapsulated, non-extinguishing zinc oxide varistor arrester for use in distributor housings
• High current carrying capacity with long lifespan
Application example: PV systems with or without separated insulated lightning protection system
Technical data
Technical data
| Network form | TN |
|---|---|
| Signalling on device | Visual |
| Protection rating | IP20 |
| Remote signalling | no |
| Test class, type 2 | yes |
| Nominal voltage AC (50/60 Hz) | 400 V |
| Integrated back-up fuse | no |
| Maximum continuous voltage AC | 300 V |
| Maximum continuous voltage DC | 300 V |
| Nominal discharge current (8/20 µs) | 20 kA |
| Pole version | 1 |
| Installation type | On basic element |
| Max. mains-side overcurrent protection | 125 |
| Version for | 1-pole, PV upper part with Y base to 600 V DC |
| DC network form | yes |
| IT network form | no |
| TN network form | yes |
| TN-C network form | yes |
| TN-C-S network form | yes |
| TN-S network form | yes |
| TT network form | yes |
| Other network form | no |
| Operating temperature, max. | 80 °C |
| Operating temperature, min. | -40 °C |
| SPD to IEC 61643-1 | Class II |
| SPD to EN 61643-11 | Type 2 |
| Lightning protection zone LPZ | 1→2 |
| Maximum discharge current (8/20 μs) | 40 kA |
| Response time | <25 ns |
| Maximum back-up fuse | 125 A |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Dimension | 300V DC |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1685 kg CO2e / 1 Piece |
Connectivity options
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
|---|
