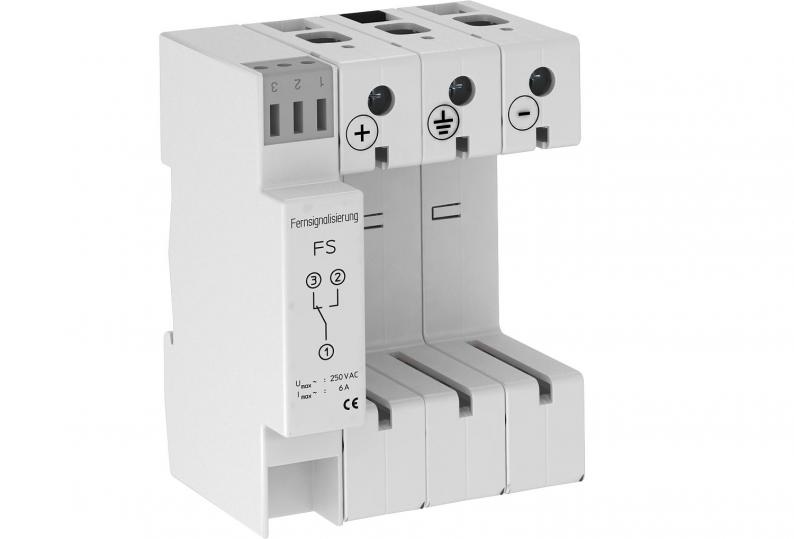

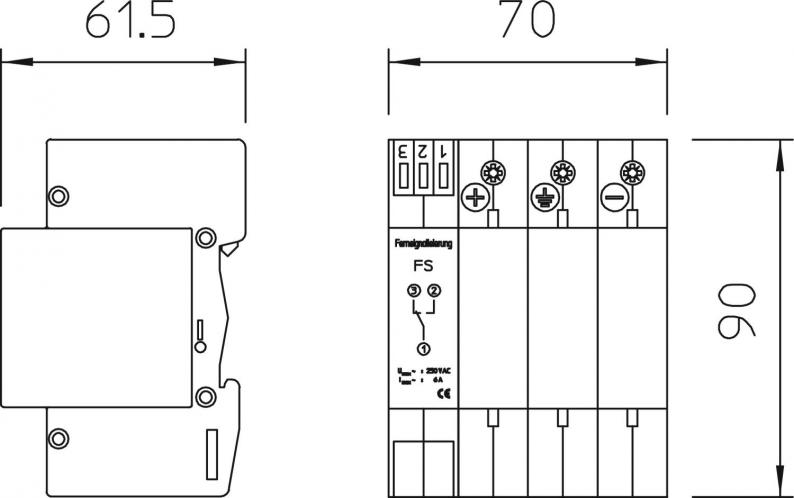

PV base, 3-pole in Y circuit with remote signalling

Type V20-C U-3PH-Y-FS | Item no. 5096646 | EAN 4012195648499

Data sheet (PDF)

Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

5096646 / V20-C U-3PH-Y-FS

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

Base for photovoltaic systems up to Voc = 1,000 V (Y circuit)

• Suitable for V 50-B+C and V25-B+C covers, type 1+2, combination arrester
• Suitable for V 20-C upper parts, type 2, surge arresters
• Protection circuit against transverse and longitudinal voltages
• Y circuit
• Low DC voltage protection level: < 4.0 kV (Voc max = 1,000 V DC with V20-C/0-440)
• Low DC voltage protection level: < 3.0 kV (Voc max = 900 V DC with V25-B+C/0-385)
• Low DC voltage protection level: < 2.6 kV (Voc max = 600 V DC with V50-B+C/0-280)
• FS with remote signalling and potential-free changeover contact for function monitoring
• Labelled connections

Application: In photovoltaic systems between PH modules and inverters.

Technical data

Protection rating	IP20
Remote signalling	yes
Pole version	3
Version for	3-pole Y circuit for photovoltaic systems with FS
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Dimension	Y-PH DC
CO2 Footprint (GWP) Cradle-to-Gate	0,9448 kg CO2e / 1 Piece

Connectivity options

Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²
