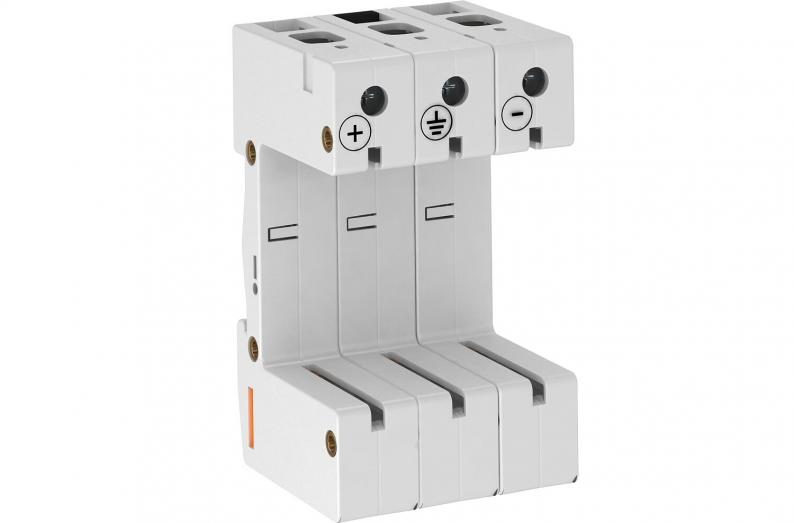

PV base, 3-pole in Y circuit

Type V20-C U-3PH-Y | Item no. 5096647 | EAN 4012195299455

Data sheet (PDF)

Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

5096647 / V20-C U-3PH-Y

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

Base for photovoltaic systems up to Voc = 1,000 V (Y-circuit)

• Suitable for V 25-B+C upper parts, type 1+2, combination arresters
• Suitable for V 20-C upper parts, type 2, surge arresters
• Protection circuit against transverse and longitudinal voltages
• Y-protection circuit
• Low DC voltage protection level: < 4.0 kV (Voc max = 1,000 V DC with V20-C/0-440)
• Low DC voltage protection level: < 3.0 kV (Voc max = 900 V DC with V25-B+C/0-385)
• Low DC voltage protection level: < 2.6 kV (Voc max = 600 V DC with V50-C/0-280)
• Labelled connections

Application: In photovoltaic systems between PH modules and inverters.

Technical data

Protection rating	IP20
Pole version	3
Version for	3-pole Y circuit for PV
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C

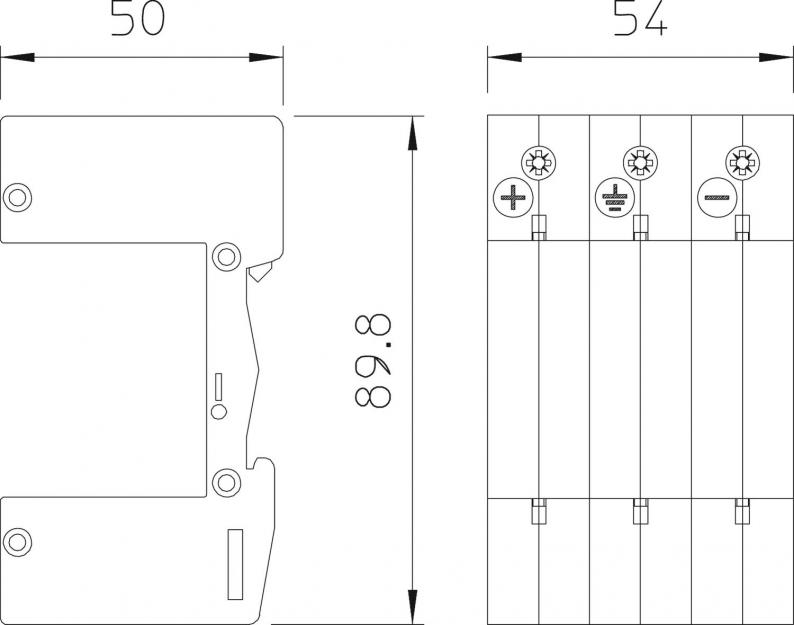

Dimension	Y-PH
CO2 Footprint (GWP) Cradle-to-Gate	0,5753 kg CO2e / 1 Piece

Connectivity options

Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²
