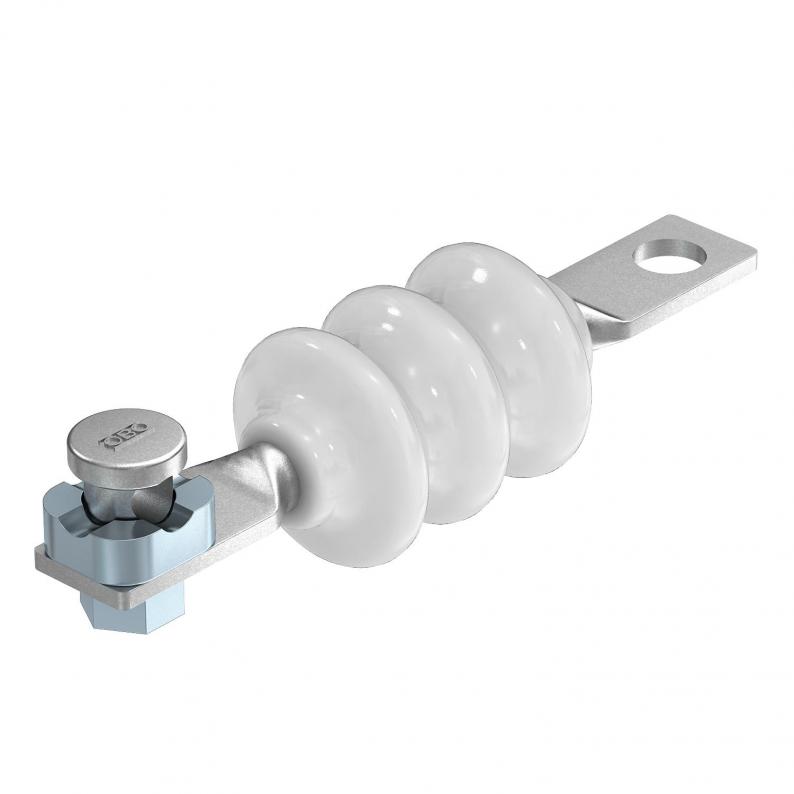

Protective spark gap
Type 482 | Item no. 5240050 | EAN 4012195412632
Item no. / Type
5240050 / 482
Smallest selling unit: 1 piece
1piece
Description
Closed spark gap for bridging a proximity point between roof standard of low-voltage system and components of outer lightning protection system.
• Protection rating IP 54
• With pre-mounted type 5001 connector for attaching round conductors Rd 8 - 10
• Protection rating IP 54
• With pre-mounted type 5001 connector for attaching round conductors Rd 8 - 10
Technical data
Technical data
| Power frequency spark-over voltage | 10 kV |
|---|---|
| Protection rating | IP54 |
| Explosion-tested version | no |
| Connection | Rd 10 mm |
| Material of the connection | Die-cast zinc |
| Protection level | < 10 kV |
| Nominal discharge surge current | 25 kA |
| Response time | <100 ns |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -20 °C |
| Dimension | 134x93x86 |
| Material | cast steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6407 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
