Protective panel 108 FS
Type SB BKS FS | Item no. 6049252 | EAN 4012196147816
Item no. / Type
6049252 / SB BKS FS
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 3 m
3m
Description

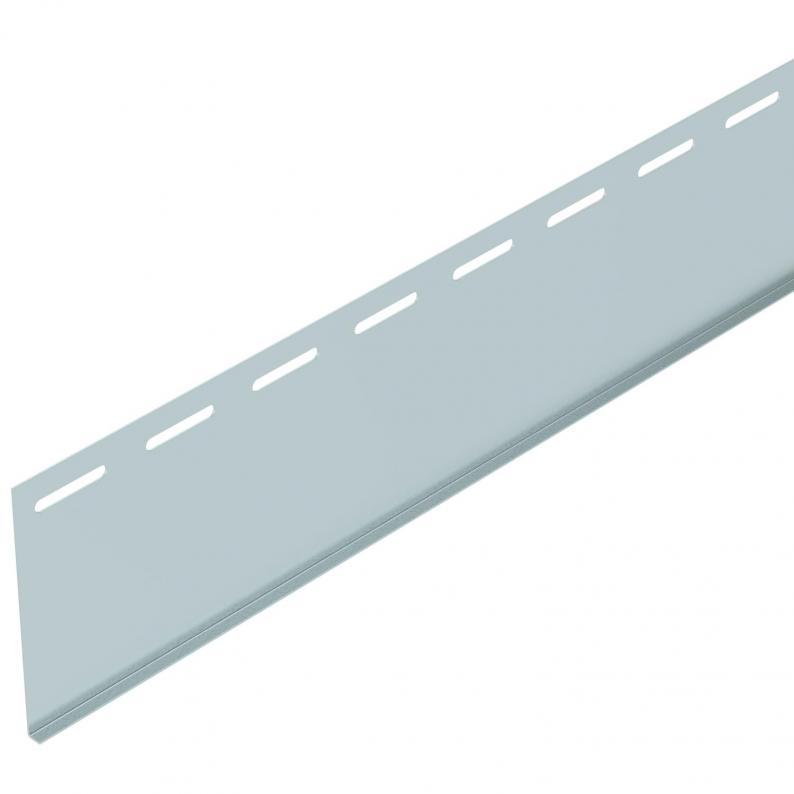

Protective panel, to be attached at the side as a collision guard for the walkable BKRS cable tray system. The side height is 108 mm.
Technical data

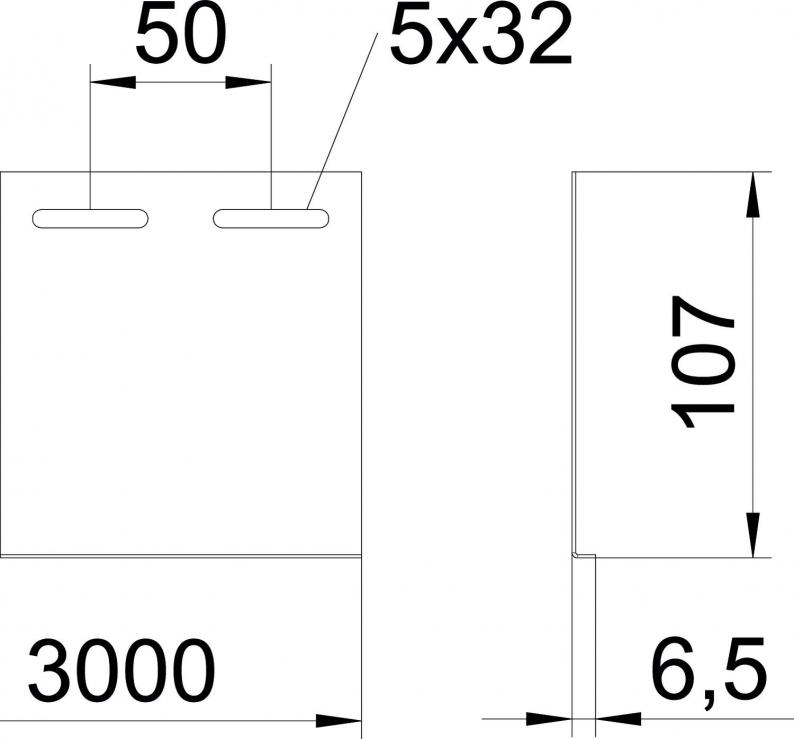

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 6,5 mm |
| Height | 108 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Thickness | 1 mm |
| Dimension | 100x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,2085 kg CO2e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Width
Height
Surface
Material
Item no.
SB BKS FS
3000
6,5
108
Strip galvanized
Steel
6049252
SB BKS FS
Item no.
6049252
Length
3000
Width
6,5
Height
108
Surface
Strip galvanized
Material
Steel
