Protective conductor terminal
Type TPE 04 | Item no. 7205708 | EAN 4012196396054
Item no. / Type
Max. Conductor cross-section
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 5 piece
5piece
Description

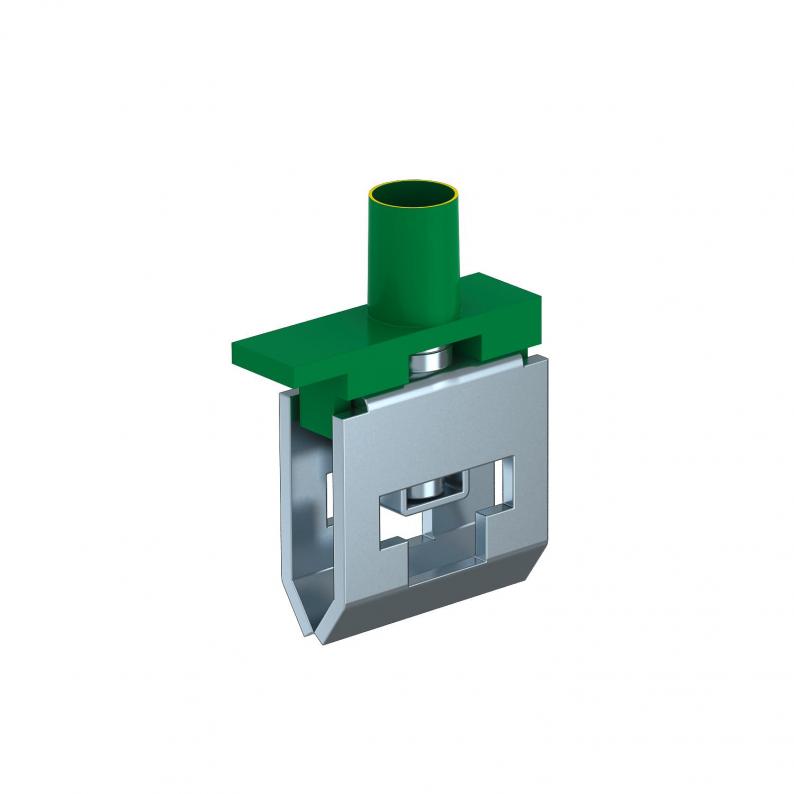

Protective conductor terminal for refitting of the FireBox T series with green-yellow identification.
Technical data

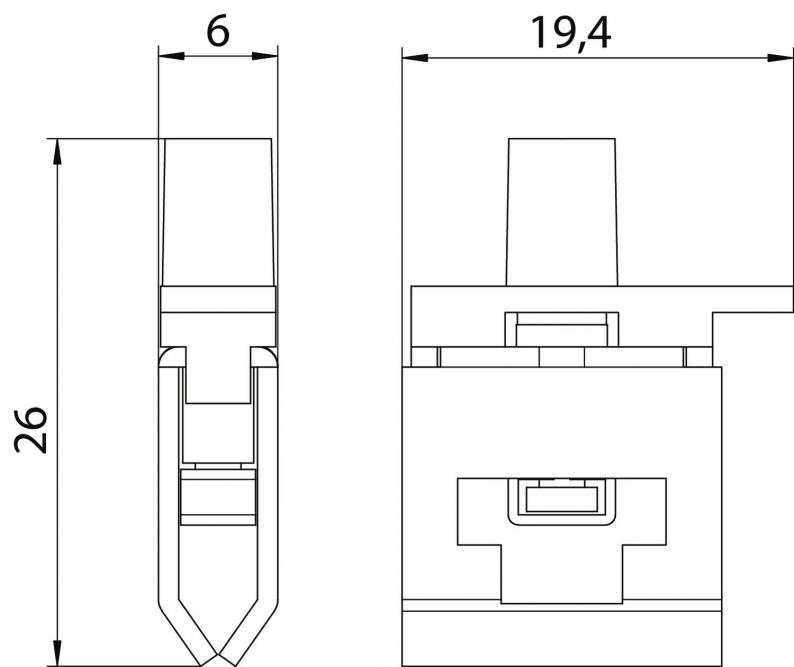

Dimensions
| Dimension L | 6 mm |
|---|---|
| Dimension B | 19 mm |
| Dimension H | 26 mm |
Technical data
| Max. Conductor cross-section | 4 mm² |
|---|---|
| Suitable for round cable connection | yes |
| Suitable for sector conductor connection | no |
| Suitable for ribbon conductor connection | no |
| Bus bar thickness | 6 mm |
| Bus bar width | 6 mm |
| Max. Measuring operating current Ie | 140 A |
| Dimension | 4 mm² |
| Material | Steel |
| Colour | Yellow green |
| Suitable for busbar | Flat rail |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Certificates (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Max. Conductor cross-section
Item no.
TPE 04
4
7205708
TPE 04
4
7205709
TPE 04
Item no.
7205708
Max. Conductor cross-section
4
TPE 04
Item no.
7205709
Max. Conductor cross-section
4
