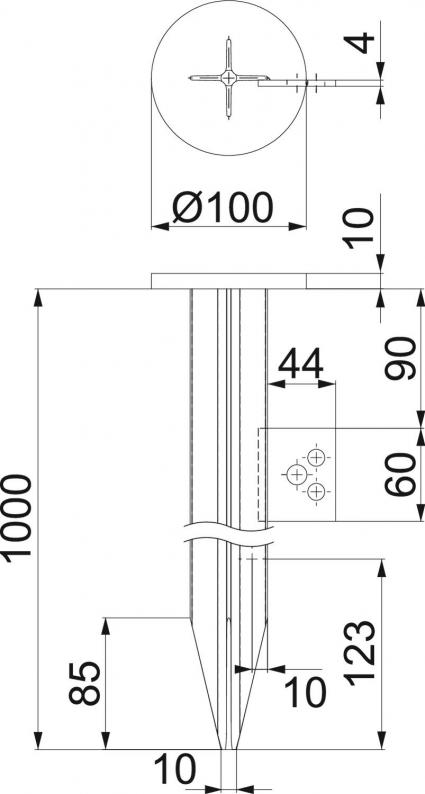

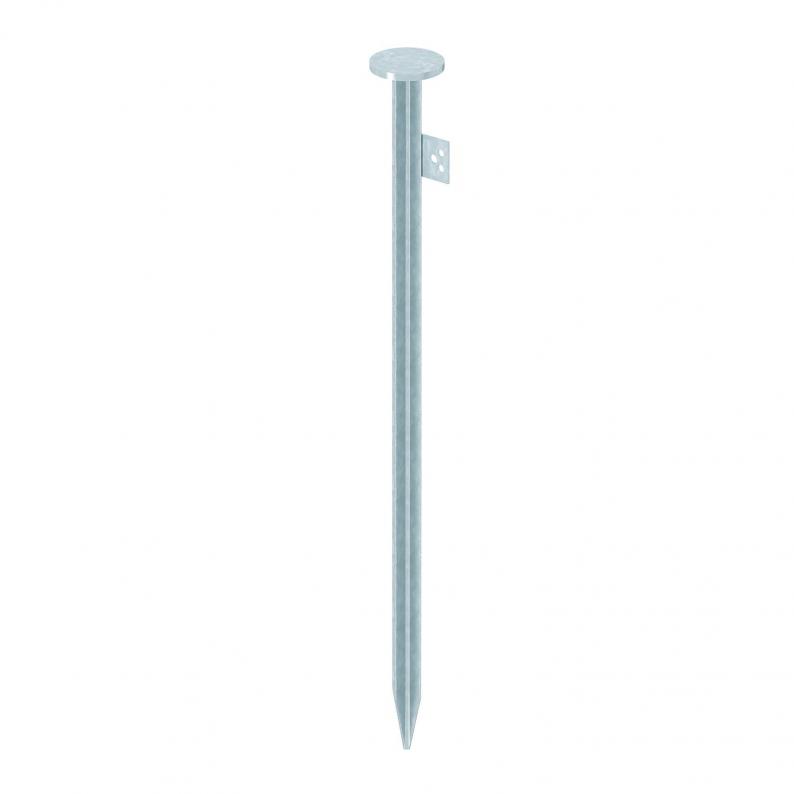

Profile earth rod with connection strap/hand protection
Type 213 1000 DIN HS | Item no. 5003081 | EAN 4012196527069
Item no. / Type
5003081 / 213 1000 DIN HS
Smallest selling unit: 5 piece
5piece
Description
• Cross-profile 50 x 50 x 3 mm
• Hand protection Ø 100 mm
• With connecting strap
• 1 gland hole Ø 13 mm
• 2 gland holes Ø 11 mm
• Round conductor fastening, e.g. with type 5001 DIN-FT possible
• For the construction of earthing systems, e.g. antennas or earthing of
building site distribution boards
• Hand protection Ø 100 mm
• With connecting strap
• 1 gland hole Ø 13 mm
• 2 gland holes Ø 11 mm
• Round conductor fastening, e.g. with type 5001 DIN-FT possible
• For the construction of earthing systems, e.g. antennas or earthing of
building site distribution boards
Technical data
Dimensions
| Length | 1000 mm |
|---|
Technical data
| Profile type | Cross |
|---|---|
| Dimension | 1000mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,5258 kg CO2e / 1 Piece |
