Potential connection
Type isCon PAE | Item no. 5408036 | EAN 4012195674719
Item no. / Type
5408036 / isCon PAE
Smallest selling unit: 2 piece
2piece
Description

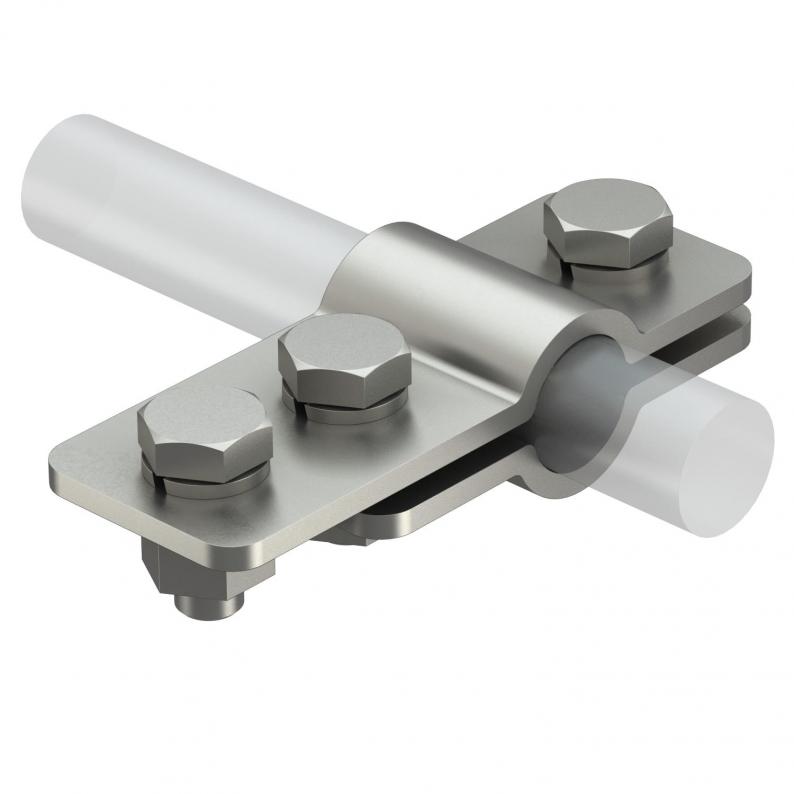

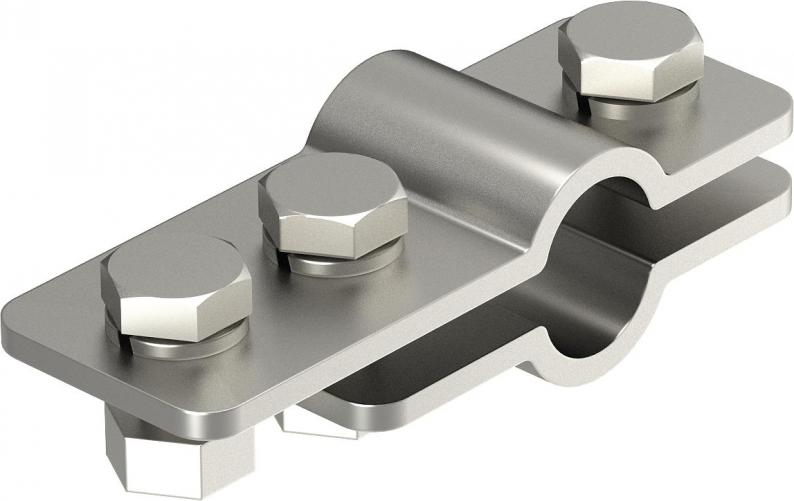

Potential connection
• To avoid floating discharges on the isCon® conductor
• With sprung discs to protect screws against loosening
• To avoid floating discharges on the isCon® conductor
• With sprung discs to protect screws against loosening
Technical data

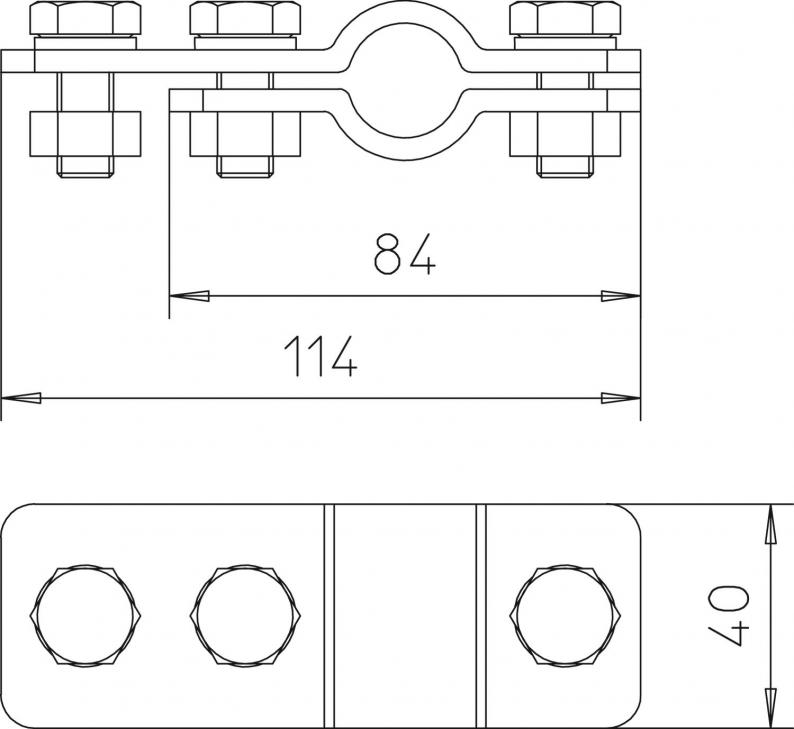

Dimensions
| Length | 114 mm |
|---|---|
| Dimension B | 40 mm |
| Dimension H | 31,4 mm |
Technical data
| Connection | Round conductor |
|---|---|
| Fit | ø 17-25 mm |
| Dimension | Ø17-25mm |
| Material | Stainless steel 1.4301 |
| Accessories | yes |
| Spare part | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,8931 kg CO2e / 1 Piece |
