Plug-in seal for pipes, light grey
Type EDR 25 20-25 LGR
|Item no. 2011514
|EAN 4012195246916
Item no. / Type
2011514 / EDR 25 20-25 LGR
Size
M25
Colour
Light grey; RAL 7035
Smallest selling unit: 50 piece
50piece
piece
Description
Plug-in seal for junction boxes for direct insertion of metric pipes
Technical data

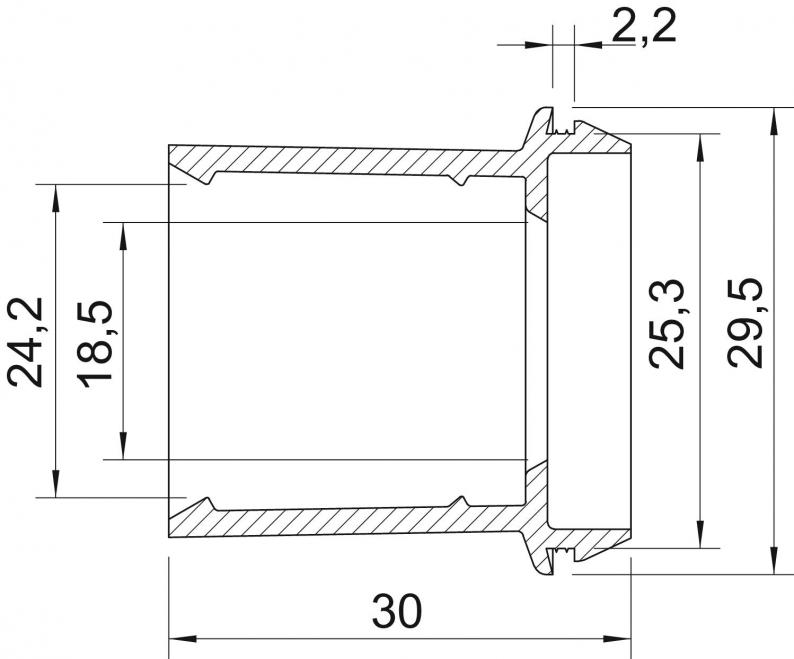

Dimensions
| Dimension D1 | 29,5 mm |
|---|---|
| Dimension D2 | 25,3 mm |
| Dimension L | 30 mm |
| Dimension A | 2,2 mm |
| Dimension D3 | 18,5 mm |
| Dimension D4 | 24,2 mm |
Technical data
| for diameter, min. | 20 mm |
|---|---|
| for diameter, max. | 25 mm |
| Halogen-free | yes |
| Protection rating | IP55 |
| Size | M25 |
| for wall thickness, min. | 2,2 |
| for wall thickness, max. | 2,2 |
| Nominal diameter | 25 mm |
| Version for | Open |
| Dimension | Ø25/20-25 |
| Material | Thermoplastic elastomer |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0155 kg CO2e / 1 Piece |
