Plug-in seal for FireBox T series
Type EDK 25 OR | Item no. 7205675 | EAN 4012196280551
Item no. / Type
for diameter, max.
for diameter, min.
Size
Smallest selling unit: 10 piece
10piece
Description

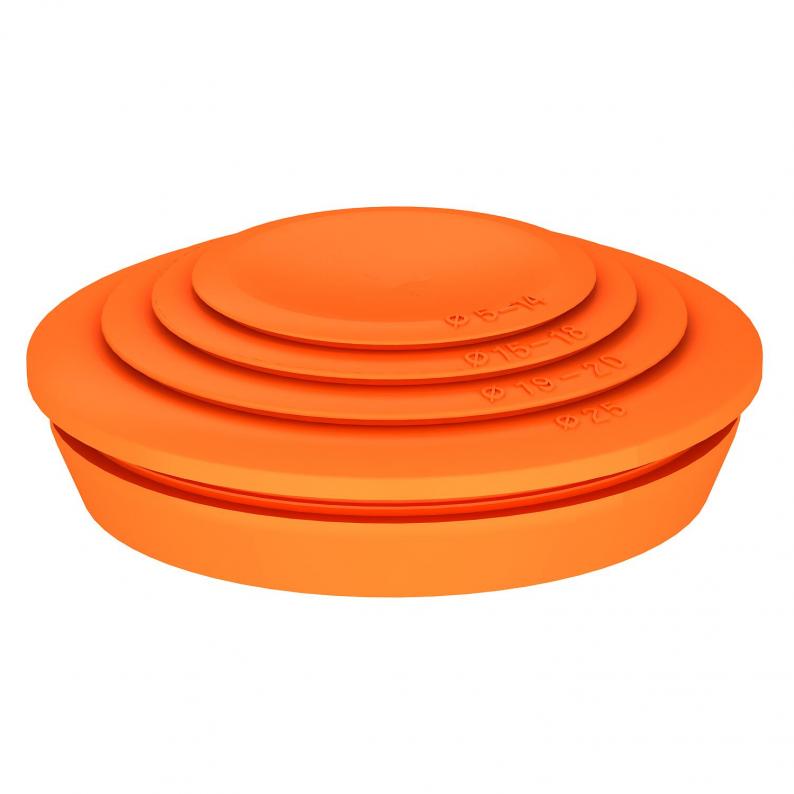

The soft plug-in seal can be cut back step by step to suit the relevant cable diameter.
Colour: Pastel orange.
Colour: Pastel orange.
Technical data
Dimensions
| Dimension D1 | 29,5 mm |
|---|---|
| Dimension D2 | 25,4 mm |
| Dimension L | 10,1 mm |
| Dimension A | 2,2 mm |
| Dimension D3 | 5 mm |
| Dimension D5 | 15 mm |
| Dimension D4 | 10 mm |
Technical data
| for diameter, max. | 22 mm |
|---|---|
| for diameter, min. | 0 mm |
| Halogen-free | no |
| Size | M25 |
| for wall thickness, min. | 2,2 |
| Nominal diameter | 25 mm |
| Version for | Cuttable |
| Dimension | M25 |
| Material | Thermoplastic elastomer |
| Colour | Pastel orange; RAL 2003 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0158 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Certificates (1)
Product images (2)
Tender specifications (2)
Variants
Type
for diameter, max.
for diameter, min.
Size
Item no.
EDK 25 OR
22
0
M25
7205675
EDK 32 OR
27
0
M32
7205677
EDK 40 OR
34
0
M40
7205679
for diameter, max.
Size
EDK 25 OR
Item no.
7205675
for diameter, max.
22
for diameter, min.
0
Size
M25
EDK 32 OR
Item no.
7205677
for diameter, max.
27
for diameter, min.
0
Size
M32
EDK 40 OR
Item no.
7205679
for diameter, max.
34
for diameter, min.
0
Size
M40
