Plug-in seal EDK pure white

Plug-in seal EDK pure white

Type EDK 40 RW
|
Item no. 2011700
|
EAN 4012195303220
Show all variants
Item no. / Type
for diameter, min.
for diameter, max.
Size

Smallest selling unit: 25 piece

piece

Description

The plug-in seal can be cut back to suit the relevant cable diameter.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 55
  • M40 entry
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

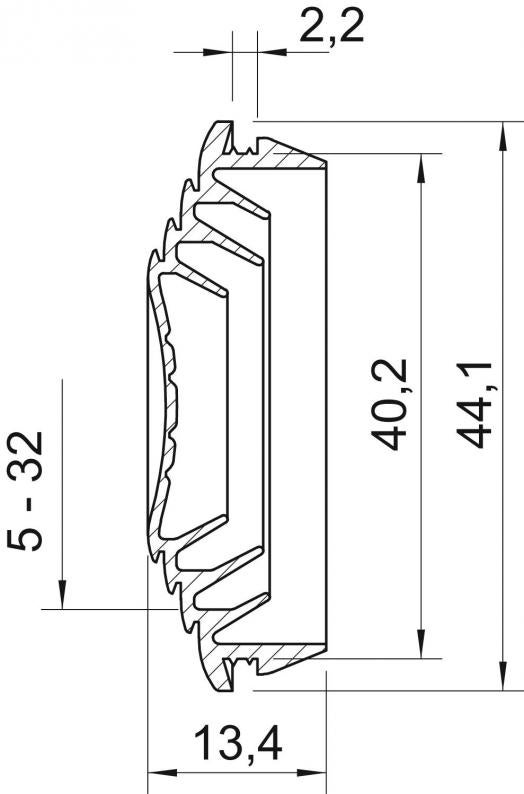

Dimensions

Dimension D144,1 mm
Dimension D240,2 mm
Dimension L13,4 mm
Dimension A2,2 mm
Dimension D35 mm
Dimension D515 mm
Dimension D414 mm

Technical data

for diameter, min.5 mm
for diameter, max.32 mm
Halogen-freeyes
Protection ratingIP55
SizeM40
for wall thickness, min.2,2 mm
for wall thickness, max.2,2 mm
Nominal diameter40 mm
Version forCuttable
DimensionØ40/5-32
MaterialThermoplastic elastomer
ColourPure white; RAL 9010

Environmental Data

0,0304 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0304 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
Tender specifications (1)

Variants

for diameter, max.
Size
EDK 25 RW
Item no.
2011689
for diameter, min.
5
for diameter, max.
20
Size
M25
Colour
Pure white; RAL 9010
EDK 32 RW
Item no.
2011697
for diameter, min.
5
for diameter, max.
25
Size
M32
Colour
Pure white; RAL 9010
EDK 40 RW
Item no.
2011700
for diameter, min.
5
for diameter, max.
32
Size
M40
Colour
Pure white; RAL 9010
