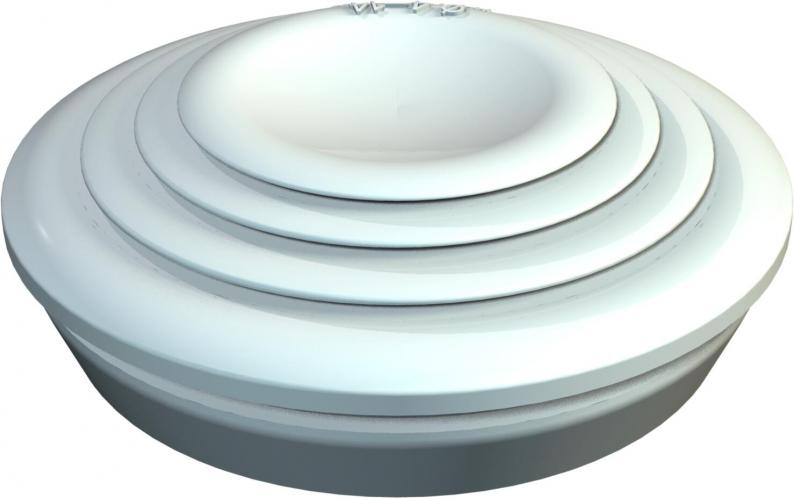

Plug-in seal EDK light grey

Plug-in seal EDK light grey

Type EDK 25 LGR | Item no. 2011638 | EAN 4012195246961

Show all variants
Item no. / Type
for diameter, max.
for diameter, min.
Size
Colour

Smallest selling unit: 100 piece

DescriptionTechnical dataDownloadsVariants

Description

The plug-in seal can be cut back to suit the relevant cable diameter.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 55
  • M25 entry
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

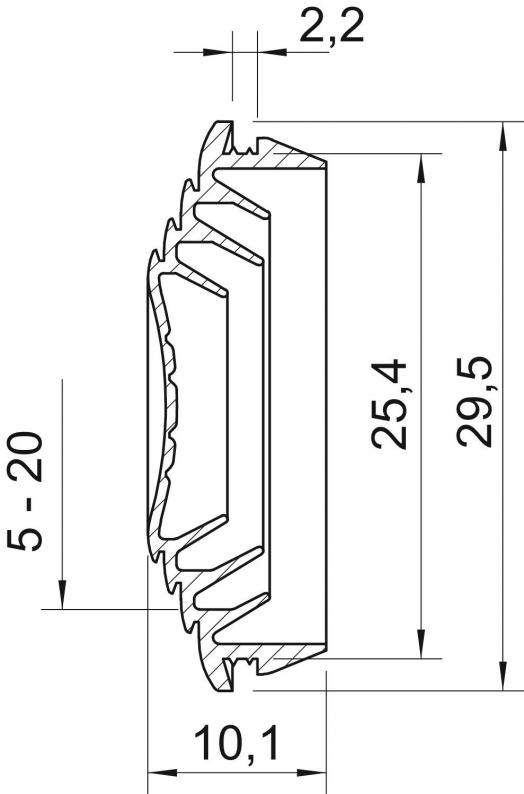

Dimensions

Dimension D129,5 mm
Dimension D225,4 mm
Dimension L10,1 mm
Dimension A2,2 mm
Dimension D35 mm
Dimension D515 mm
Dimension D414 mm

Technical data

for diameter, max.20 mm
for diameter, min.5 mm
Halogen-freeyes
Protection ratingIP55
SizeM25
for wall thickness, max.2,2
for wall thickness, min.2,2
Nominal diameter25 mm
Version forCuttable
DimensionØ25/5-20
MaterialThermoplastic elastomer
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate0,0072 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (3)
Tender specifications (2)

Variants

for diameter, max.
Size
Colour
EDK 25 LGR
Item no.
2011638
for diameter, max.
20
for diameter, min.
5
Size
M25
Colour
Light grey; RAL 7035
EDK 32 LGR
Item no.
2011646
for diameter, max.
25
for diameter, min.
5
Size
M32
Colour
Light grey; RAL 7035
EDK 40 LGR
Item no.
2011654
for diameter, max.
32
for diameter, min.
5
Size
M40
Colour
Light grey; RAL 7035
EDK 25 RW
Item no.
2011689
for diameter, max.
20
for diameter, min.
5
Size
M25
Colour
Pure white; RAL 9010
EDK 32 RW
Item no.
2011697
for diameter, max.
25
for diameter, min.
5
Size
M32
Colour
Pure white; RAL 9010
EDK 40 RW
Item no.
2011700
for diameter, max.
32
for diameter, min.
5
Size
M40
Colour
Pure white; RAL 9010
