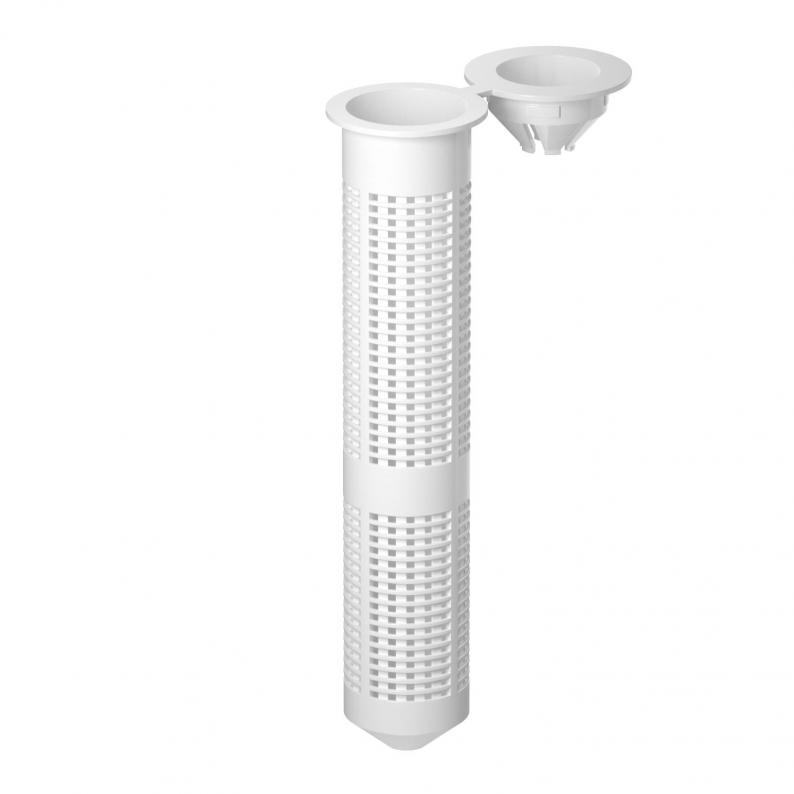

Plastic wire sleeve
Type VMU-SH 12x80 | Item no. 3497860 | EAN 4012196606900
Item no. / Type
Length
Dimension d
Smallest selling unit: 10 piece
10piece
Description
The plastic wire sleeve is a supplement to the anchor rod or internal thread sleeve and is used to install components on masonry.
The plastic wire sleeve VM-SH 12x80 is mounted with the anchor rod VMU-A 8x110.
The plastic wire sleeve VM-SH 16x85 is mounted with the anchor rods VMU-A 10x130 and VMU-A 10x150 or the internal thread sleeve VMU-IG M6x80.
The plastic wire sleeve VM-SH 16x130 is mounted with the anchor rod VMU-A 10x150.
The plastic wire sleeve VM-SH 20x85 is mounted with the anchor rod VMU-A 12x155 or the internal thread sleeve VMU-IG M8x80 and VMU-IG M10x80.
The plastic wire sleeve VM-SH 12x80 is mounted with the anchor rod VMU-A 8x110.
The plastic wire sleeve VM-SH 16x85 is mounted with the anchor rods VMU-A 10x130 and VMU-A 10x150 or the internal thread sleeve VMU-IG M6x80.
The plastic wire sleeve VM-SH 16x130 is mounted with the anchor rod VMU-A 10x150.
The plastic wire sleeve VM-SH 20x85 is mounted with the anchor rod VMU-A 12x155 or the internal thread sleeve VMU-IG M8x80 and VMU-IG M10x80.
Technical data
Dimensions
| Length | 80 mm |
|---|---|
| Dimension L | 80 mm |
| Dimension d | 12 mm |
Technical data
| Self-tapping | no |
|---|---|
| With flange | yes |
| Version for | For pushing in |
| Material | Polyamide |
| Colour | White |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Length
Dimension d
Item no.
VMU-SH 12x80
80
12
3497860
VMU-SH 16x85
85
16
3497862
VMU-SH 16x130
130
16
3497864
VMU-SH 20x85
85
20
3497866
Length
Dimension d
VMU-SH 12x80
Item no.
3497860
Length
80
Dimension d
12
VMU-SH 16x85
Item no.
3497862
Length
85
Dimension d
16
VMU-SH 16x130
Item no.
3497864
Length
130
Dimension d
16
VMU-SH 20x85
Item no.
3497866
Length
85
Dimension d
20
