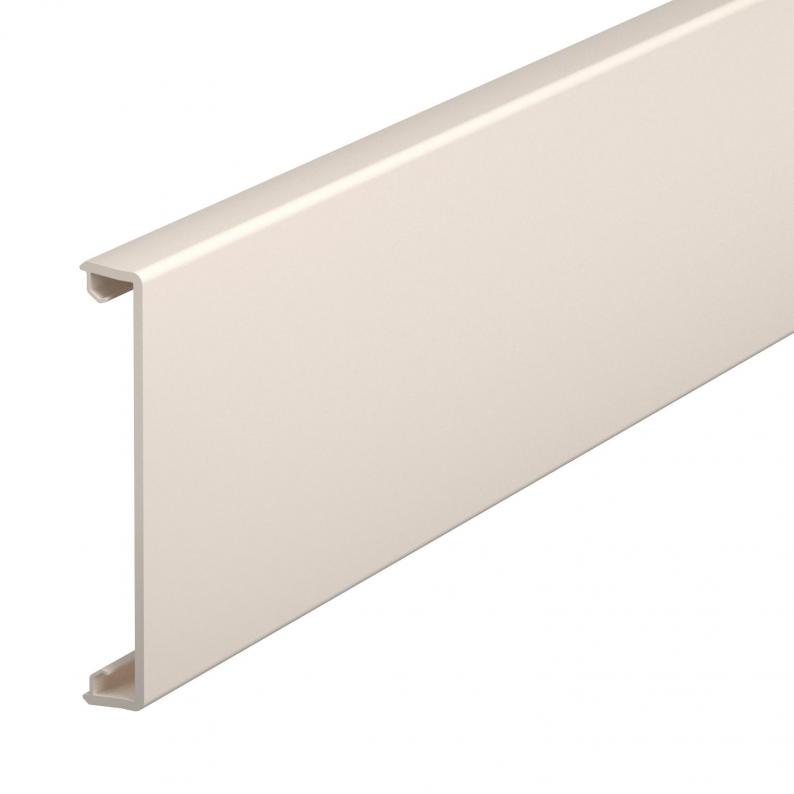

Plastic trunking cover, smooth
Type GK-OTGCW | Item no. 6278681 | EAN 4012195666417
Item no. / Type
Length
Colour
Smallest selling unit: 2 m
2m
Description
Smooth trunking cover, for closing device installation trunking with 76.5 mm system opening.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|

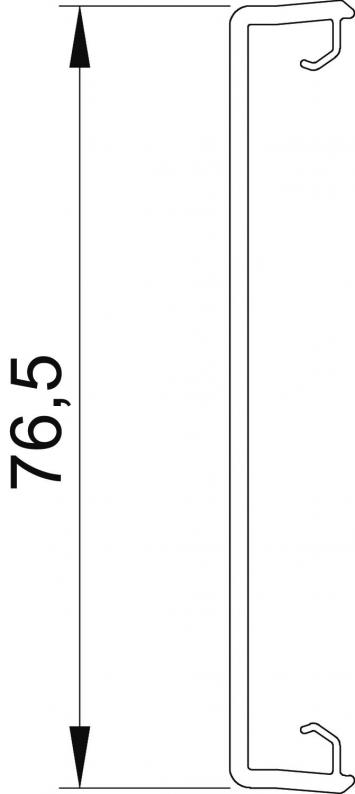

| Width | 76,5 mm |
| Height | 12 mm |
Technical data
| Protection rating | IP30 |
|---|---|
| Cover mounting type | Internal |
| Protection rating IK code | IK08 |
| Version for | Smooth |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -15 °C |
| Dimension | 80x2000mm |
| Material | Polyvinylchloride |
| Colour | Cream; RAL 9001 |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5406 kg CO2e / 1 Meter |
