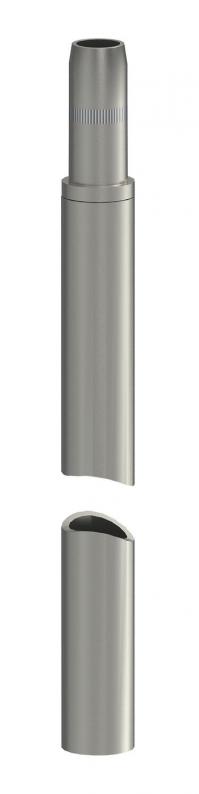

Pipe earth rod LE, A4
Type LE ERDER V4A | Item no. 5000335 | EAN 4012195708834
Item no. / Type
5000335 / LE ERDER V4A
Smallest selling unit: 5 piece
5piece
Description
• Expandable earth rod system for erecting earthing connections (type A)
• The pipe earth rod system LE is connected using the pre-mounted sleeve
• Complies with requirements according to DIN VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• For use with antenna earthing systems, lightning earthing systems, etc.
• The pipe earth rod system LE is connected using the pre-mounted sleeve
• Complies with requirements according to DIN VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• For use with antenna earthing systems, lightning earthing systems, etc.
Technical data

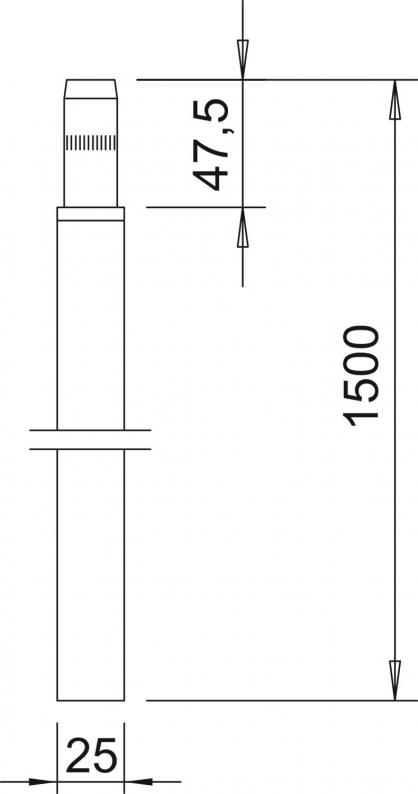

Dimensions
| Length | 1500 mm |
|---|---|
| Dimension L | 1500 mm |
| Dimension D | 25 mm |
Technical data
| Profile type | Round D=25 mm |
|---|---|
| External diameter | 25 mm |
| Dimension | 1,5m |
| Material | Stainless steel 1.4404 |
| CO2 Footprint (GWP) Cradle-to-Gate | 8,7955 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 3041409
Driving spike for pipe earth rod LEType
LE SPITZE
Smallest selling unit: 5 piece
5piece
Item no. 3042308
Driving head for LightEarth earth rodType
LE KOPF
Smallest selling unit: 1 piece
1piece
Item no. 5001633
Connection clip for earth rod, universal A4Type
2760 20 V4A
Smallest selling unit: 5 piece
5piece
Variants
Type
Length
External diameter
Item no.
LE ERDER V4A
1500
25
5000335
LE ERDER V4A
Item no.
5000335
Length
1500
External diameter
25
