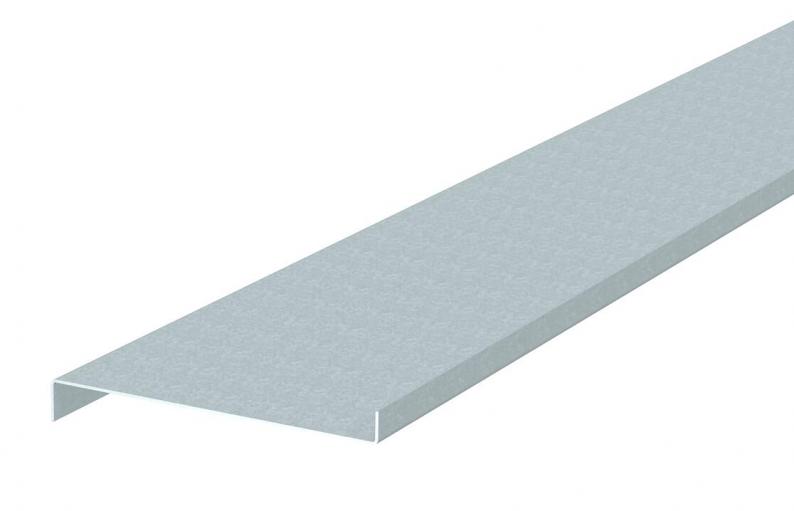

Partition TWP
Type TWP | Item no. 6288264 | EAN 4012195147510
Item no. / Type
6288264 / TWP
Suitable for duct depth
133
Smallest selling unit: 2 m
2m
Description
Partition for desk trunking to divide the trunking for different voltage levels.
Technical data

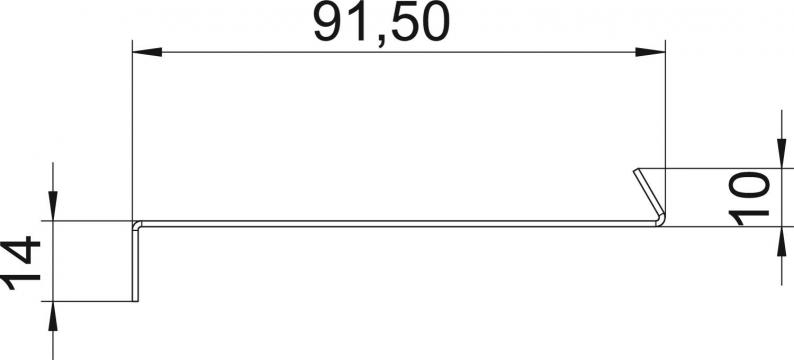

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 14 mm |
| Height | 92 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Suitable for duct depth | 133 |
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Fastening type | Plug-in |
| Version for | Single |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -25 °C |
| Dimension | 14x92x2000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,2713 kg CO2e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Certificates (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Suitable for duct depth
Item no.
TWP
2000
133
6288264
TWP
Item no.
6288264
Length
2000
Suitable for duct depth
133
