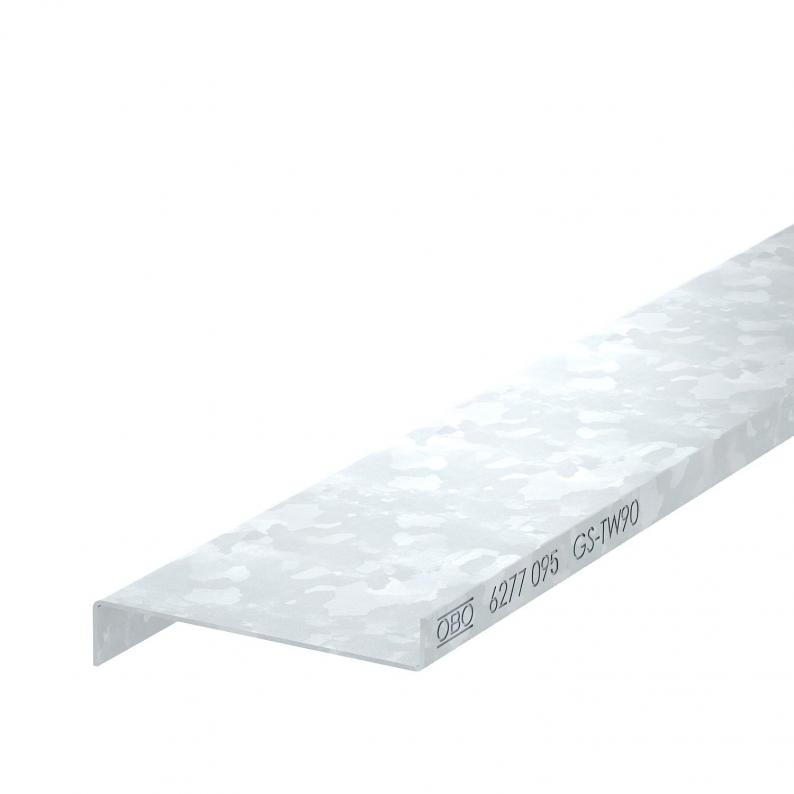

Partition GS-TW90

Partition GS-TW90

Type GS-TW90
|
Item no. 6277095
|
EAN 4012195659341
Show all variants
Item no. / Type
6277095 / GS-TW90
Length
2000 mm
Suitable for duct depth
90

Smallest selling unit: 2 m

m

Description

Partition to divide the trunking for different voltage levels. Self-conducting contacting during mounting.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

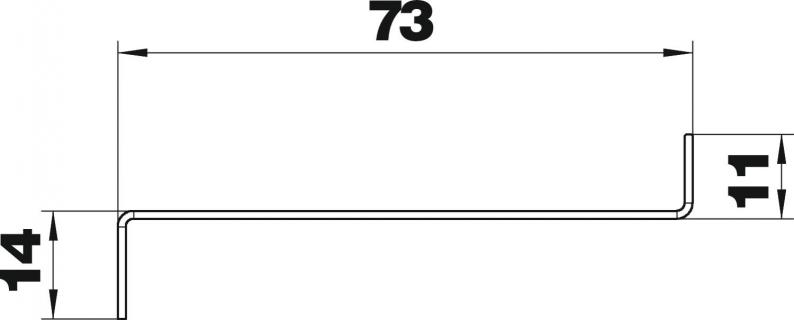

Dimensions

Length2000 mm
Width24 mm
Height73 mm

Technical data

Halogen-freeyes
Suitable for duct depth90
Protection ratingIP30
Protection rating IK codeIK10
Fastening typePlug-in
Version forSingle
Permitted temperature range, min.-25 °C
Permitted temperature range, max.60 °C
Dimension24x73x2000
SurfaceStrip galvanized
MaterialSteel
Colourzinc

Environmental Data

1,6666 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,6666 kg CO2e / 1 Meter
