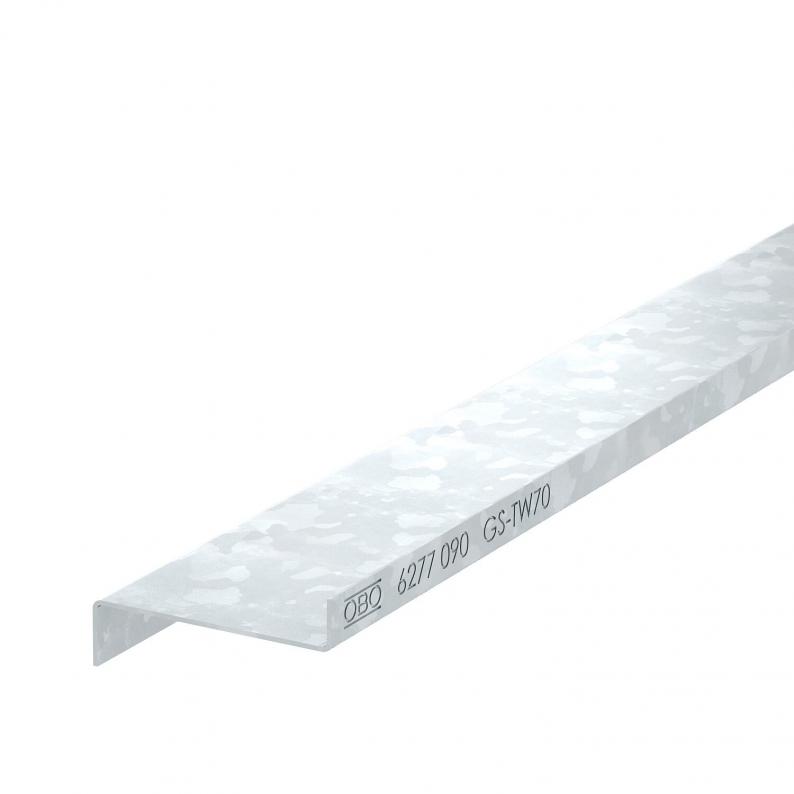

Partition GS-TW70
Type GS-TW70
|Item no. 6277090
|EAN 4012195659334
Item no. / Type
6277090 / GS-TW70
Suitable for duct depth
70
Smallest selling unit: 2 m
2m
m
Description
Partition to divide the trunking for different voltage levels. Self-conducting contacting during mounting.
Technical data

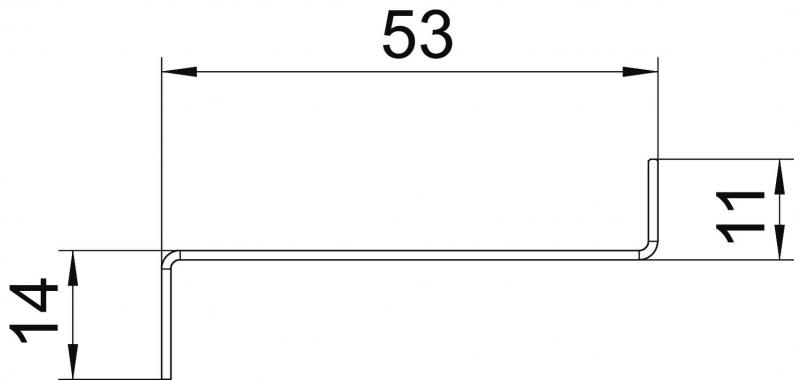

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 24 mm |
| Height | 53 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Suitable for duct depth | 70 |
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Fastening type | Plug-in |
| Version for | Single |
| Permitted temperature range, min. | -25 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 24x53x2000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,3095 kg CO2e / 1 Meter |
