Partition GKH-TW70

Partition GKH-TW70

Type GKH-TW70
|
Item no. 6114290
|
EAN 4012196451173
Show all variants
Item no. / Type
6114290 / GKH-TW70
Suitable for duct depth
70

Smallest selling unit: 2 m

m

DescriptionTechnical dataDownloadsVariants

Description

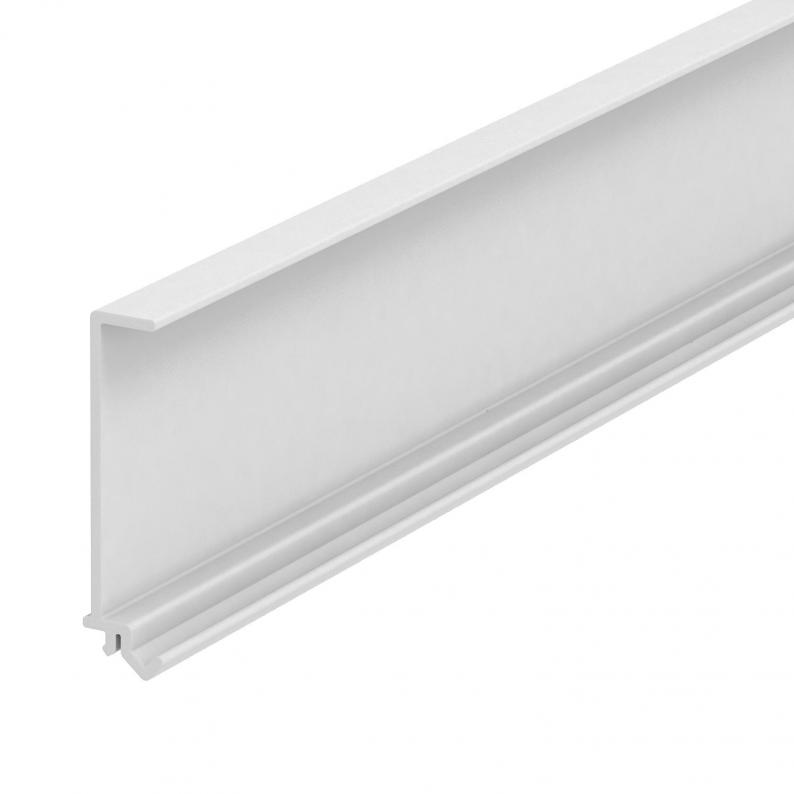

Partition made of halogen-free PC/ABS for mounting in Rapid 80 GKH (GA) device installation trunking or ISS service poles for installing cables of different voltage levels.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

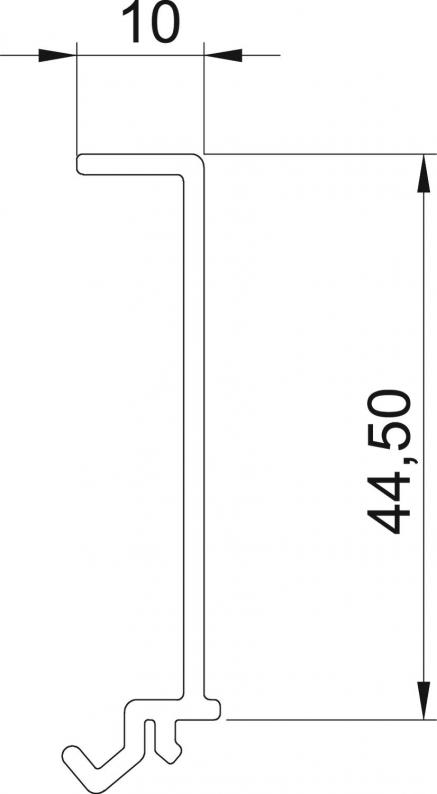

Dimensions

Length2000 mm
Width44,5 mm
Height10 mm

Technical data

Halogen-freeyes
Suitable for duct depth70
Protection ratingIP30
Protection rating IK codeIK08
Fastening typePlug-in
Version forSingle
Permitted temperature range, min.-15 °C
Permitted temperature range, max.90 °C
Dimension70x2000
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate0,7748 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

GKH-TW70
Item no.
6114290
Length
2000
Suitable for duct depth
70
