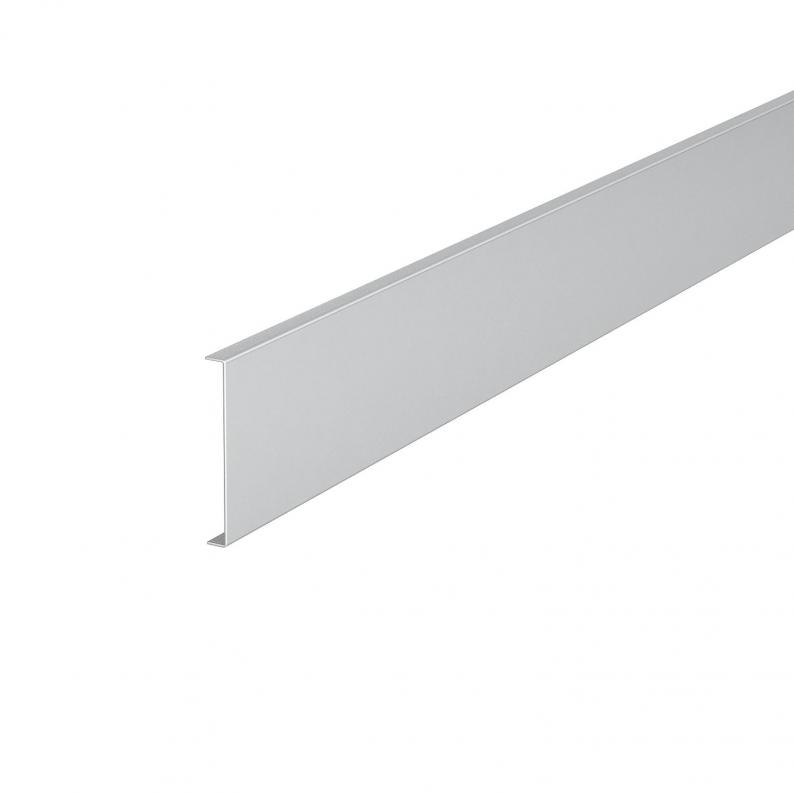

Partition GA-TW90
Type GA-TW90 | Item no. 6279714 | EAN 4012195770046
Item no. / Type
6279714 / GA-TW90
Suitable for duct depth
90
Smallest selling unit: 2 m
2m
Description
Partition to divide the Rapid 80 GA, Rapid IBIS aluminium device installation trunking and ISS service poles for the installation of different voltage levels.
For vertical mounting of device installation trunking and the installation of ISS service poles, the duct clamps, type KL80A, are required for secure fixing of the partition.
For vertical mounting of device installation trunking and the installation of ISS service poles, the duct clamps, type KL80A, are required for secure fixing of the partition.
Technical data

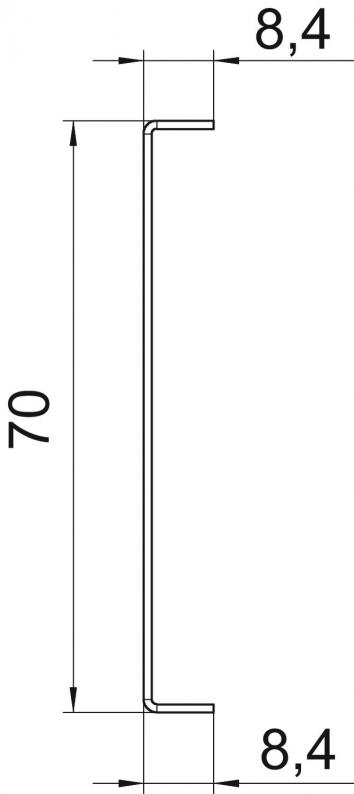

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 71 mm |
| Height | 8,4 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Suitable for duct depth | 90 |
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Fastening type | Insertable |
| Version for | Single |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -25 °C |
| Dimension | 8,4x70x2000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,809 kg CO2e / 1 Meter |
