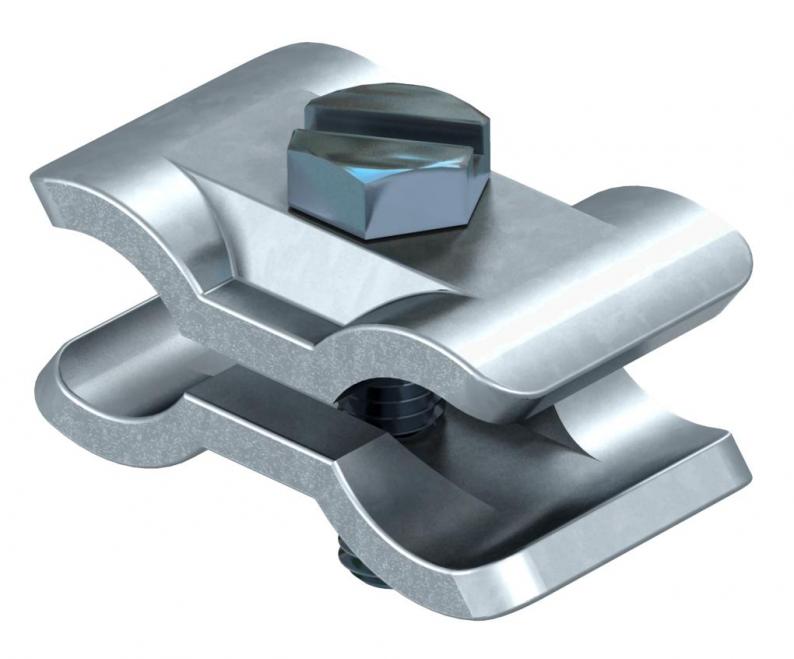

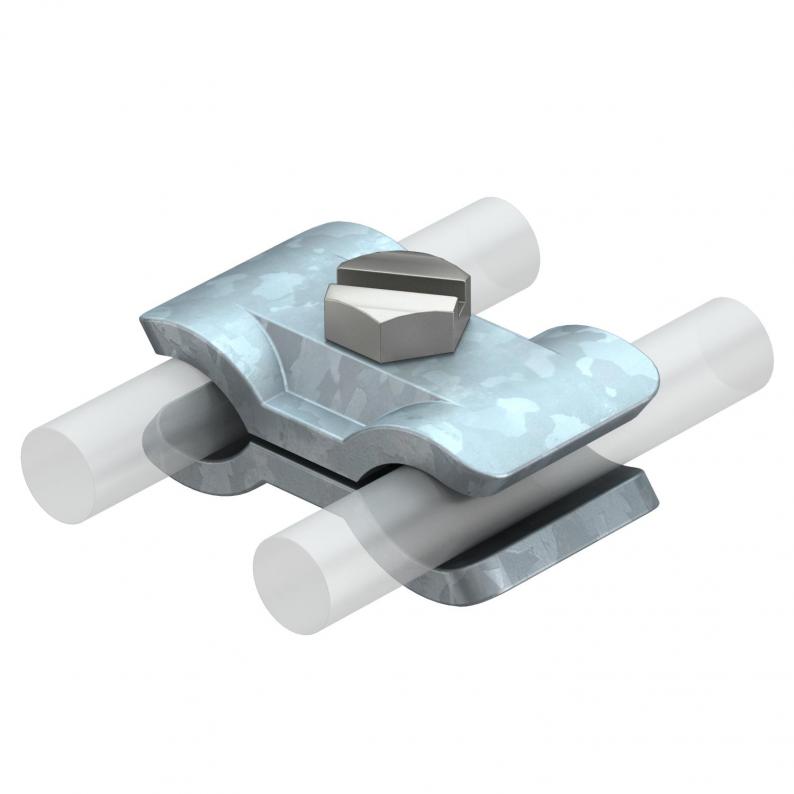

Parallel clamp for the connecting of reinforcing steels FT

Parallel clamp for the connecting of reinforcing steels FT

Type 259 A FT
|
Item no. 5315514
|
EAN 4012195740414
Show all variants
Item no. / Type
Fit

Smallest selling unit: 25 piece

piece

Description

• For connecting reinforced steels Ø 10−20 mm
• Mounted with M10 x 40 bolts
  • Lightning current-tested
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Intermediate plateno
Type of fastening screwHexagonal bolt
Type of connectorParallel connector
Suitable for connectionMiscellaneous
Lightning current carrying capacityH/100 kA
FitØ 10-20 mm
Dimension10-20mm
SurfaceHot-dip galvanised
MaterialSteel

Dimensions

Dimension A35 mm
Dimension B62 mm

Environmental Data

0,4447 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,4447 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

259 A FT
Item no.
5315514
Fit
Ø 10-20
259 A ST
Item no.
5315557
Fit
Ø 10-20
