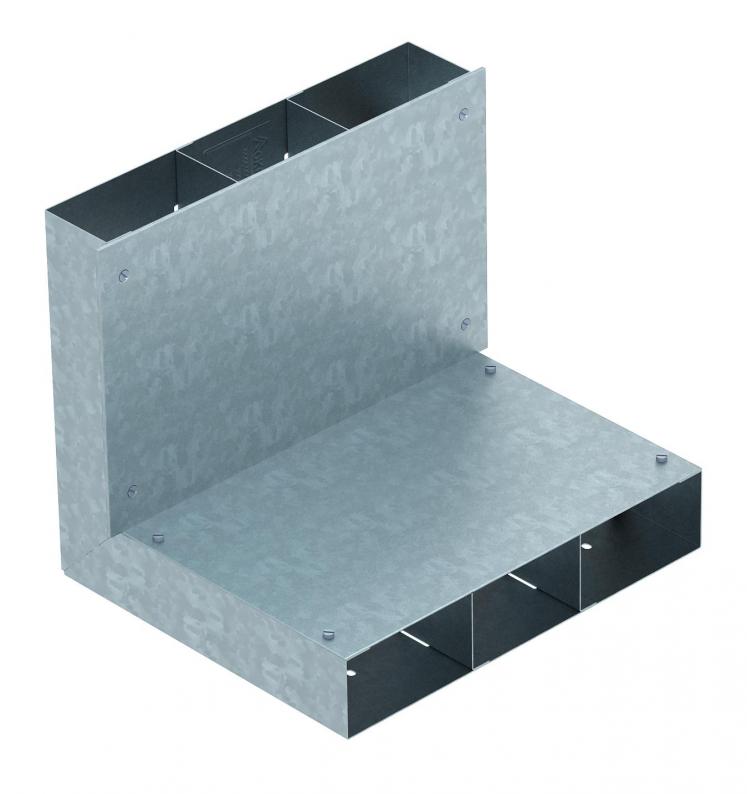

OKA-T vertical bend
Type OKA RB3 30065
|Item no. 7402420
|EAN 4012195095279
Item no. / Type
7402420 / OKA RB3 30065
Smallest selling unit: 1 piece
1piece
piece
Description
For vertical direction change of 3-compartment flushfloor OKA-T trunking system (wall connections, supplies).
Technical data

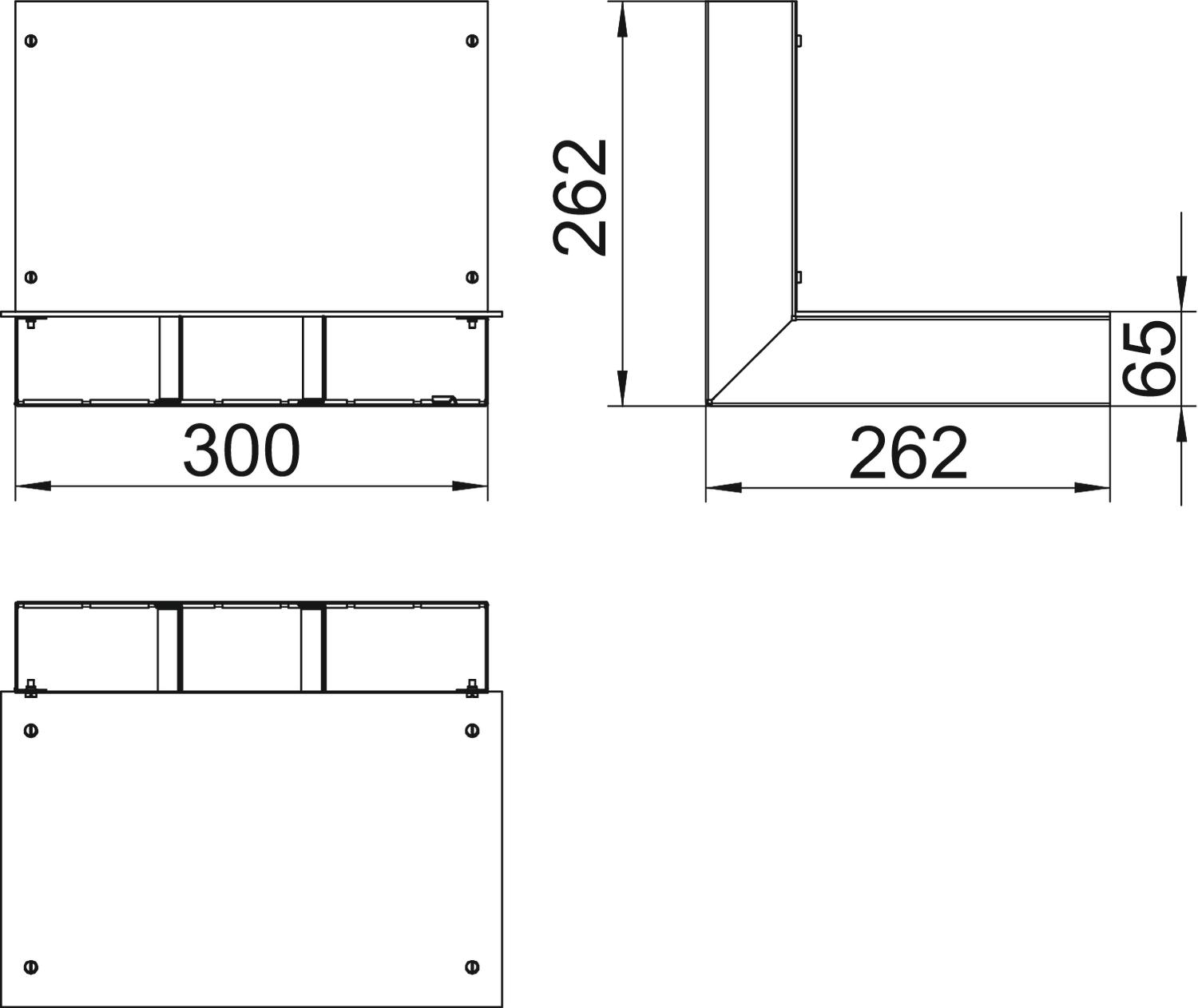

Dimensions
| Length | 262 mm |
|---|---|
| Width | 300 mm |
| Height | 65 mm |
Technical data
| Number of compartments | 3 St. |
|---|---|
| Duct height, min. | 65 mm |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
14,7345 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 14,7345 kg CO2e / 1 Piece |
|---|
