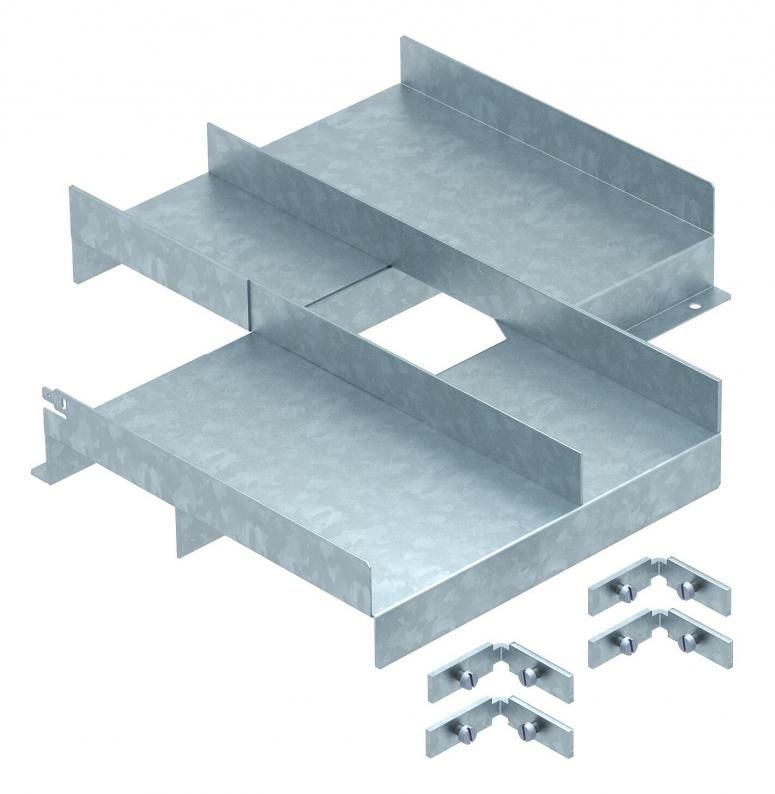

OKA-T separating element, intersection for trunking width 400 mm with 300 mm

OKA-T separating element, intersection for trunking width 400 mm with 300 mm

Type OKA CC3 40030065
|
Item no. 7402334
|
EAN 4012195095033
Show all variants
Item no. / Type
7402334 / OKA CC3 40030065

Smallest selling unit: 1 piece

piece

Description

Separating element for a three-compartment cross branch of flushfloor OKA-T trunking systems of width 300 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

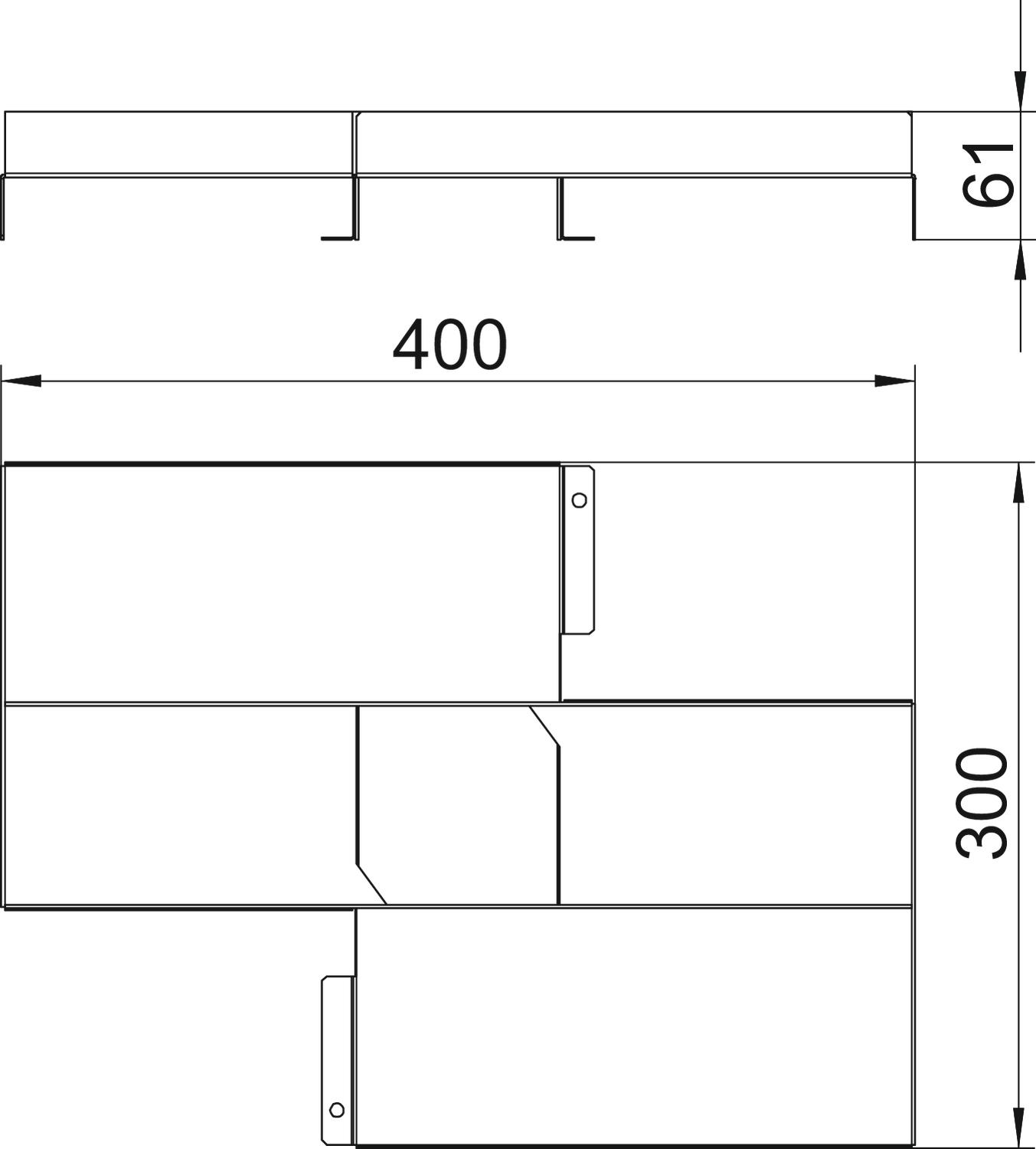

Dimensions

Dimension A300 mm
Dimension B400 mm

Technical data

Duct height, min.65 mm
SurfaceStrip galvanized
MaterialSteel

Environmental Data

5,03 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate5,03 kg CO2e / 1 Piece
