OKA-T 90° branch for trunking width 300 mm

Type OKA B30065
|
Item no. 7402304
|
EAN 4012195094951
Item no. / Type
7402304 / OKA B30065

Smallest selling unit: 1 piece

piece

Description

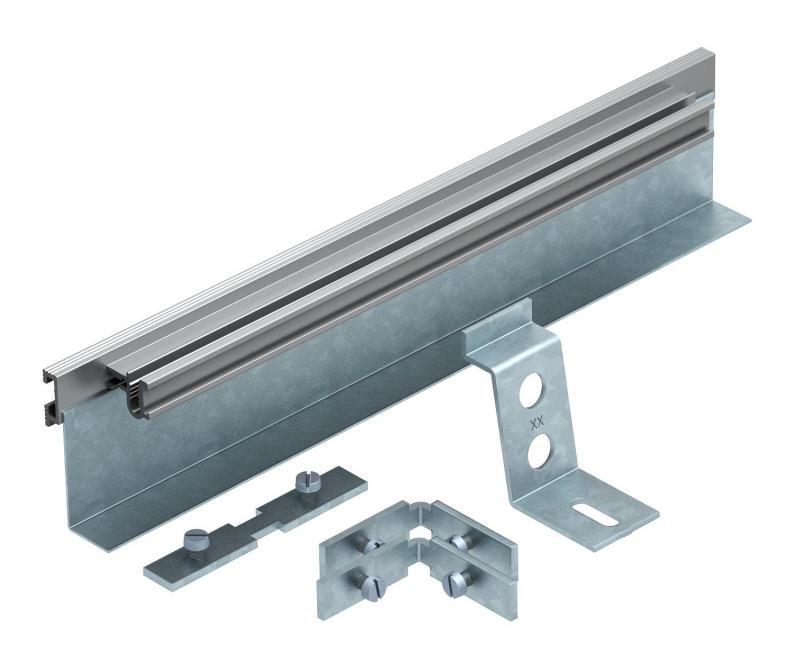

90° branch for a flushfloor OKA-T trunking system, consisting of an end cap and connection brackets.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

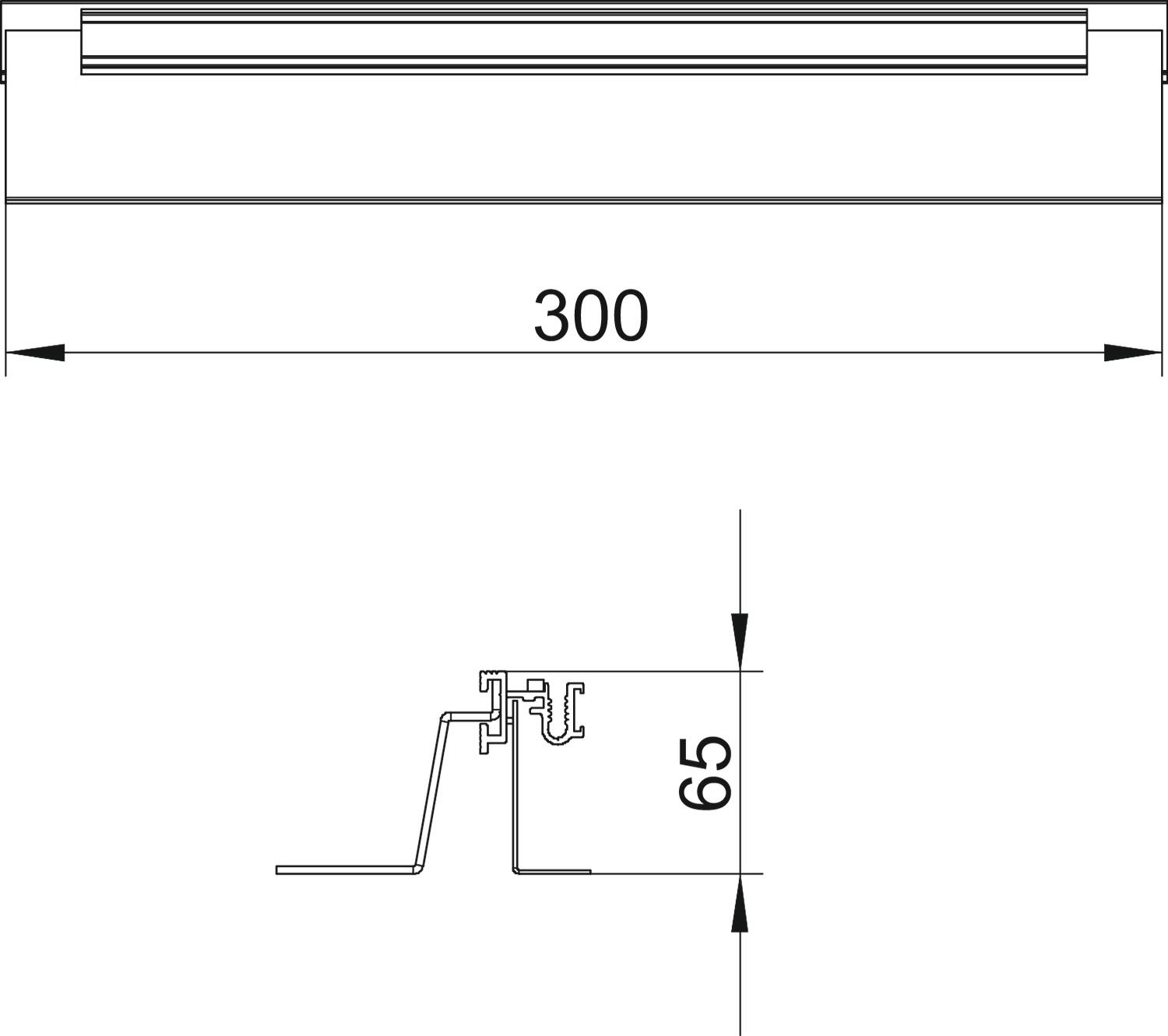

Dimensions

Width300 mm
Dimension b303 mm

Technical data

Duct height, min.65 mm
SurfaceStrip galvanized
MaterialSteel

Environmental Data

5,3539 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate5,3539 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

OKA B30065
Item no.
7402304
