Noise limit barrier 7LSB
Type 7LSB
|Item no. 6288650
|EAN 4012195148791
Item no. / Type
Length
Smallest selling unit: 15 piece
15piece
piece
Description

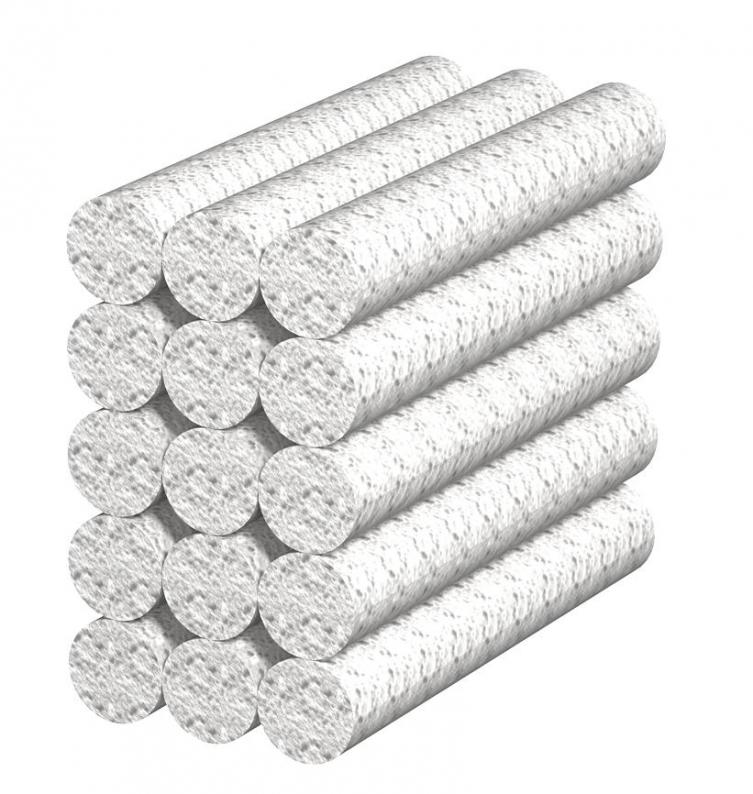

The noise limit barrier is used to reduce the transmission of airborne noise, e.g. when the trunking system is run through a wall between two offices. The noise limit barrier is made of glass wool, which, when delivered, has a diameter of approx. 30 mm and a length of approx. 300 mm. The material need not be greatly compressed during mounting.
The attenuation is approx. 40 dB.
The attenuation is approx. 40 dB.
Technical data

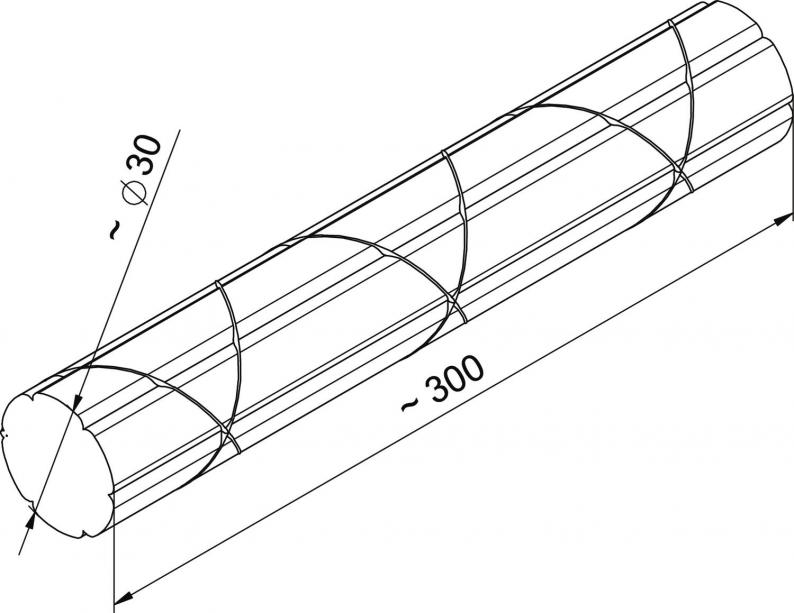

Dimensions
| Length | 300 mm |
|---|---|
| Width | 30 mm |
| Height | 30 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Diameter | 30 mm |
|---|---|
| Halogen-free | yes |
| Dimension | 30x300mm |
| Material | Mineral fibres |
| Colour | White |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0086 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Item no.
7LSB
300
6288650
7LSB M
50000
6288651
Length
7LSB
Item no.
6288650
Length
300
7LSB M
Item no.
6288651
Length
50000
