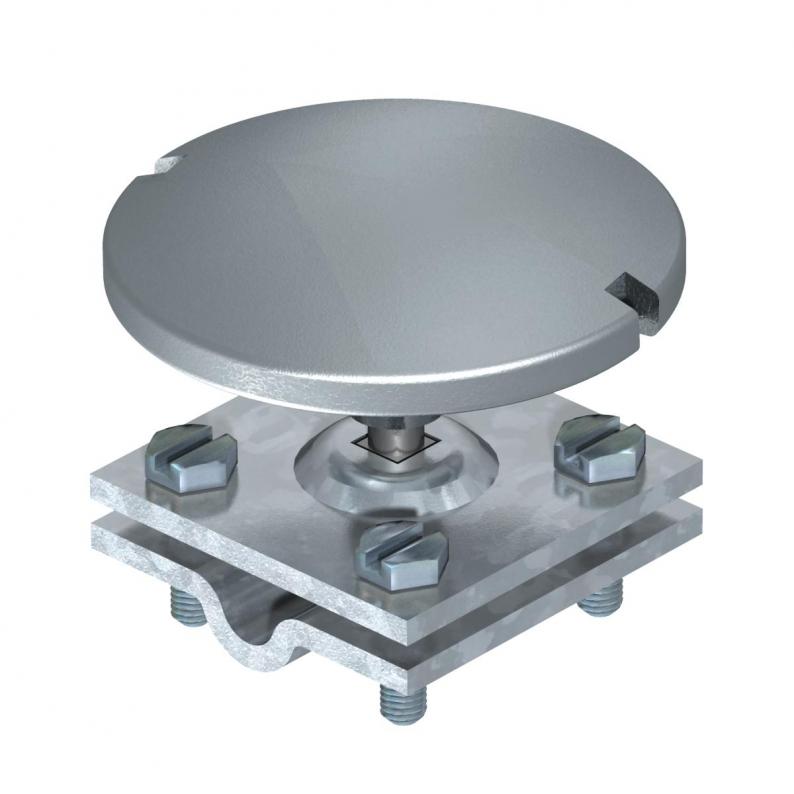

Mushroom-shaped air-termination with connectors
Type 128 F | Item no. 5405769 | EAN 4012195428718
Item no. / Type
5405769 / 128 F
Smallest selling unit: 5 piece
5piece
Description
• Mushroom-shaped air-termination from aluminium
• With pre-mounted cross-piece and hexagonal bolt M8 x 25, hot-dip galvanised steel
• For round conductor Rd 8-10 and flat conductor FL 30
• With pre-mounted cross-piece and hexagonal bolt M8 x 25, hot-dip galvanised steel
• For round conductor Rd 8-10 and flat conductor FL 30
Technical data
Technical data
| Diameter | 80 mm |
|---|---|
| Connection | Round conductor |
| Version for | Mushroom-shaped interceptor |
| Fit | Rd 8-10/ FL30 mm |
| Dimension | 50-60mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,7614 kg CO2e / 1 Piece |

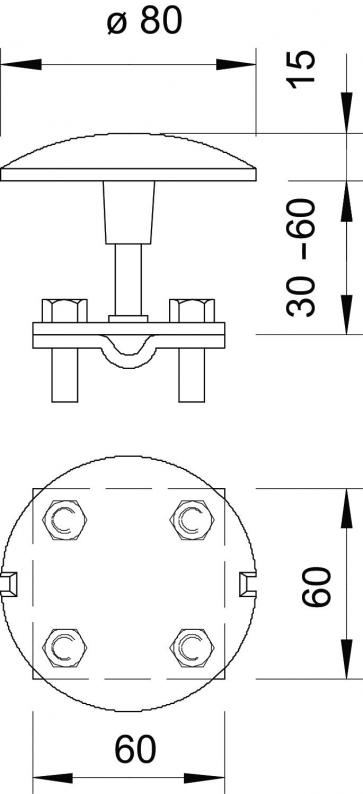

Dimensions
| Dimension d min. | 80 mm |
|---|
